Drilling a hole for a round electrical box sounds simple, but choosing the wrong size hole saw can lead to a world of frustration. A hole that’s too small means tedious reaming and a sloppy fit. A hole that’s too large creates an insecure installation and potential safety hazards. This guide will eliminate the guesswork, ensuring a perfect, professional-quality cutout every single time.
The core of the problem lies in the fact that electrical box dimensions and hole saw sizes don’t have a one-to-one relationship. The “trade size” of a box is not the actual diameter you need to cut. You must account for the box’s flange, mounting tabs, and the material you are cutting into. Getting this wrong is the number one reason for improper fits.
Why the Right Hole Saw Size is Non-Negotiable
A perfectly sized hole is about more than just aesthetics; it’s a critical component of a safe and secure electrical installation. An oversized hole can prevent the box from seating securely, leading to movement and stress on the wiring connections over time. This can be especially dangerous for heavier fixtures like ceiling fans, where a wobbly box is a significant safety risk.
Conversely, a hole that is too small requires forcing the box into the opening, which can damage the drywall or plaster and even crack the electrical box itself. This struggle often results in a less-than-professional finish and can complicate the final installation of devices and cover plates. Understanding the precise requirements for different box types and wall materials is key.
Understanding “Old Work” vs. “New Work” Boxes
A frequent point of confusion is the distinction between “new work” and “old work” boxes. New work boxes are designed to be installed on open studs before drywall is hung. They typically have nailing flanges or brackets for direct attachment to the framing.
“Old work,” or “remodel,” boxes are designed for installation in existing walls. These boxes are supported by mounting ears or “wings” that clamp onto the back of the drywall. The cutout size for these boxes is especially critical, as the ears need a precise edge to grip securely without falling through a too-large hole.

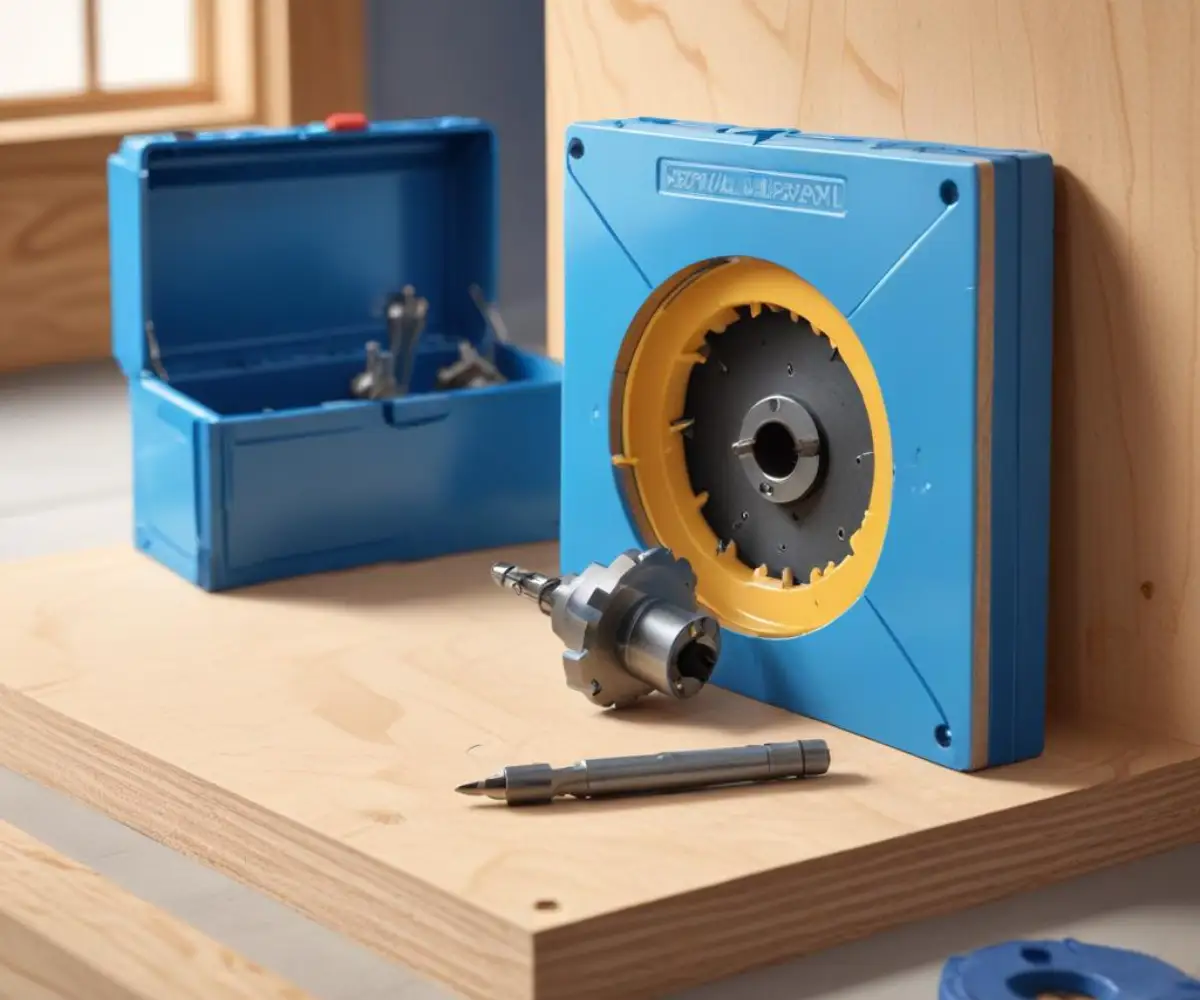

The Definitive Guide to Hole Saw Sizes for Round Boxes
Choosing the correct hole saw is not a guessing game. It depends on the specific make and model of the round electrical box you are using. While there are common sizes that work for many standard boxes, you should always measure the box or consult the manufacturer’s specifications if possible.
Below is a comprehensive table that outlines the most common round electrical box types and the recommended hole saw size for each. Following these guidelines will prevent costly mistakes and ensure a snug, secure fit for your installation.
Hole Saw Size Chart for Common Round Electrical Boxes
| Box Type / Description | Common Application | Recommended Hole Saw Size (Inches) |
|---|---|---|
| Standard 4″ Round Old Work Box (Plastic/Fiberglass) | Wall sconces, light fixtures | 4″ or 4 1/8″ (4″ may require minor trimming for tabs) |
| 3-1/2″ Round Old Work Box (Phenolic/Plastic) | Lightweight fixtures, smoke detectors | 3 5/8″ |
| 4″ Round “Pancake” Box (Metal) | Surface mount for light fixtures (shallow depth) | 4″ |
| Fan-Rated Saddle Box (Metal) | Ceiling fans, heavy fixtures | 4 1/8″ |
| Arlington Industries MB-8 / Slater C1-18 | Specific models for old work fixtures | 3 3/4″ (Always verify with box specs) |
Important Note: These sizes are general recommendations. Some brands may have slight variations. For instance, some electricians prefer a 4-inch hole saw for Carlon B618-R boxes and then slightly trim the opening for a perfect fit. When in doubt, a slightly smaller hole is always easier to correct than one that is too large.
Mastering the Cut: Techniques for a Flawless Hole
Having the right size hole saw is only half the battle. Your technique will determine the quality of the final cutout. A rushed or improper cut can lead to splintered wood, torn drywall paper, or a misshapen hole that compromises the installation.
For the cleanest cut, especially in brittle materials like old plaster or wood paneling, start the hole saw in reverse (counter-clockwise). This scores the surface without grabbing and tearing the material. Once a groove is established, switch the drill to the forward (clockwise) direction and proceed with a slow, steady pressure.
Working with Different Wall Materials
The material of your wall or ceiling significantly impacts the cutting process. Drywall is the most forgiving material, but you should still use a sharp hole saw to avoid tearing the paper face. Applying painter’s tape over the cutting area can help achieve cleaner edges.
Plaster and lath walls require a more delicate approach. Using a standard toothed hole saw can cause significant cracking and damage. A carbide-grit hole saw is the superior choice for plaster, as it grinds rather than cuts, minimizing vibration and collateral damage. It’s often recommended to use two different hole saws: a carbide grit saw for the plaster and then a standard bi-metal saw for the wood lath behind it.
For wood paneling or siding, splintering is the primary concern. Running the hole saw in reverse to score the surface is an excellent technique here as well. Maintaining a slow, consistent speed is crucial to prevent the teeth from catching and splintering the wood. It is critical to ensure proper wiring practices, such as understanding when you can you mix yellow and white romex, to maintain a safe electrical system behind these walls.
Beyond the Basics: Advanced Considerations
In some scenarios, a standard approach might not be sufficient. For example, when dealing with very large openings or when a precise, clean cut is paramount, an adjustable hole cutter can be an invaluable tool. These tools often come with a dust shield, which is a massive benefit when cutting into a ceiling, as it catches the majority of debris.
It’s also essential to consider the complexity of the wiring within the box. Properly managing multiple conductors is a key aspect of electrical safety. If you’re working with larger conductors, knowing how to splice 6 gauge wire correctly is a critical skill that directly impacts the safety and reliability of the installation.
The Unspoken Rule: Measure Twice, Cut Once
This age-old advice is perhaps the most important rule in any installation project. Before you even touch the drill, double-check the diameter of your electrical box. Hold the box up to your hole saw to get a visual confirmation. It’s a simple step that can save you from the headache of patching a hole that’s the wrong size.
Furthermore, understanding the principles of your entire electrical system is crucial. Issues like continuity between neutral and ground can indicate serious underlying problems that should be addressed by a professional. A simple box installation is part of a much larger, interconnected system that demands respect and knowledge.
Frequently Asked Questions
What is the most common hole saw size for a standard 4-inch round electrical box?
For most standard 4-inch round electrical boxes, a 4 1/8-inch hole saw is the recommended size. This provides a snug fit for the box without being too tight. However, it’s always a good practice to double-check the manufacturer’s specifications for your specific electrical box.
Are there different hole saw sizes for different types of round electrical boxes?
Yes, the required hole saw size can vary depending on the specific model and brand of the round electrical box. For instance, some Arlington round cut-in boxes work well with a 3 5/8-inch hole saw. Certain fiberglass round boxes are also designed for a 3 5/8-inch opening.
What size hole saw should I use for a 3.5-inch round electrical box?
For a 3.5-inch round electrical box, a 3 5/8-inch hole saw is often the appropriate choice. This slight oversizing allows the box to fit properly into the cutout. Always measure the box and consult its documentation if you are unsure.
Does the wall material affect the type of hole saw I should use?
While the size of the hole saw is determined by the electrical box, the wall material does influence the type of hole saw you should use. For plaster or lath, a carbide-grit hole saw is recommended as it will dull a standard toothed saw quickly. For drywall or wood, a standard bi-metal hole saw is generally sufficient.
What if I don’t have the exact hole saw size?
It is best to use the recommended hole saw size for a clean and secure installation. If your hole saw is slightly too small, you may be able to enlarge the hole with a keyhole saw or rasp. However, a hole that is too large will not properly support the electrical box and should be avoided.
Beyond the Cutout: Pre-Installation Wall Cavity Inspection and Structural Fortification
Ensuring a perfect cutout for a round electrical box is a sign of craftsmanship, but what lies unseen behind the drywall is paramount to a truly safe and durable installation. Before the pilot bit ever touches the wall, a crucial, yet often overlooked, phase of reconnaissance is necessary. The void behind the plaster or drywall is not always empty; it can conceal a network of plumbing lines, existing wiring, HVAC runs, and structural elements like studs or fire blocking. Accidentally drilling into any of these can transform a simple project into a costly and hazardous repair.

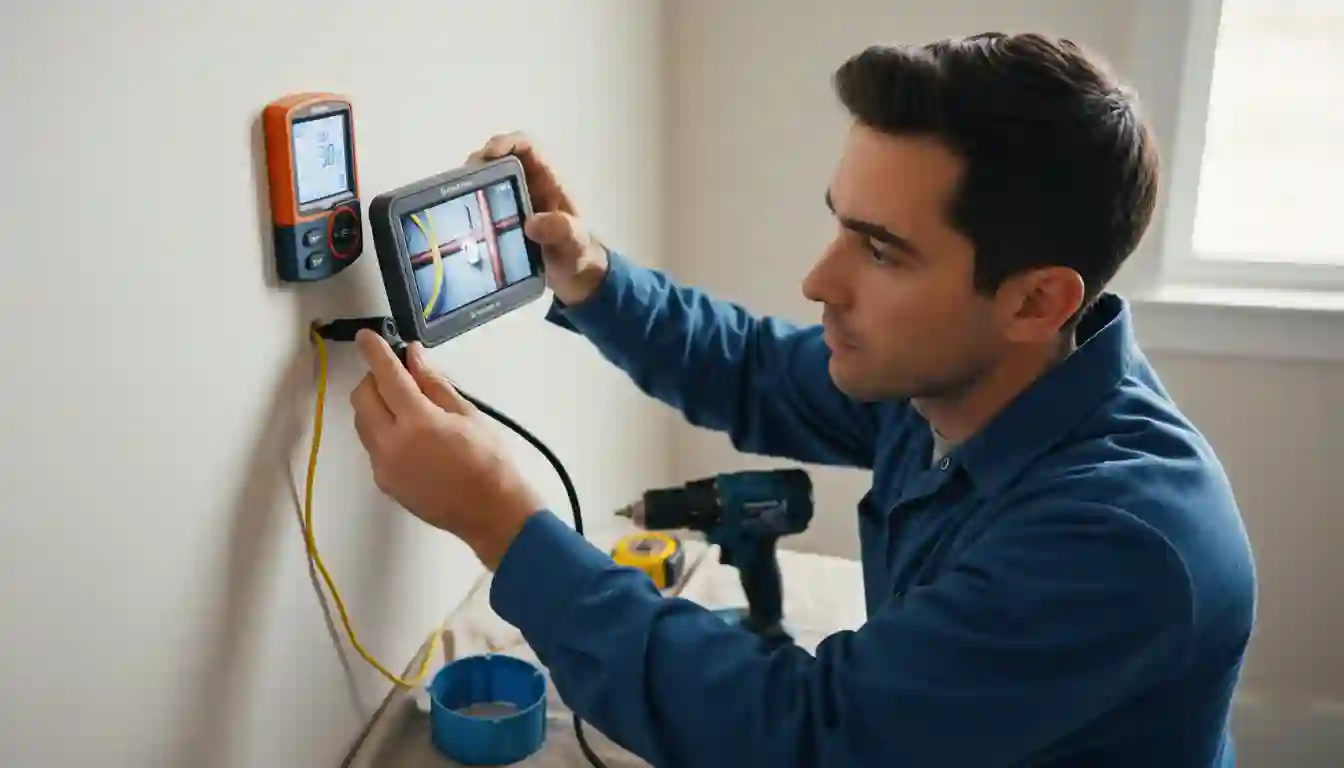

The first line of defense is a high-quality electronic stud finder. Basic models detect the edges of studs, but more advanced multi-function sensors can identify the presence of live AC wiring and metallic objects, such as pipes or nail plates. Running such a device over a wide area around the intended installation point provides a preliminary map of the hidden landscape. For absolute certainty, especially in older homes with unpredictable framing, a small endoscopic inspection camera is an invaluable investment. By drilling a tiny, easily patchable hole, this tool can be inserted into the wall cavity to provide a clear visual confirmation of any potential obstructions, eliminating all guesswork and preventing a catastrophic cutting mistake.
This initial inspection is not merely about avoidance; it is also about assessing the structural integrity of the chosen location, a critical factor when installing heavier fixtures like ceiling fans. While a fan-rated saddle box is designed to distribute weight, it is only as strong as the material it is mounted to. Drywall or plaster alone is never a sufficient anchor for the dynamic load and vibrations of a ceiling fan. The National Electrical Code (NEC) mandates that ceiling fans be securely mounted to a structural member of the building, such as a ceiling joist or a securely fastened wood block.
If the ideal location for the fixture falls between joists, installing solid blocking is not just recommended—it is a requirement for a safe installation. In a new construction scenario, this is a simple task. However, in a remodel, it requires a more surgical approach. After cutting the primary hole for the electrical box, the opening can often be used as an access point. A piece of 2×6 or 2×8 lumber, cut to fit snugly between the joists, can be maneuvered into the ceiling cavity. By “toenailing” screws at an angle through the joists and into the ends of the block, or by using specialized mounting brackets, a solid foundation can be created. This blocking provides a substantial wood surface to which the fan-rated box can be securely fastened, ensuring it will support the fan’s weight and operational torque for years to come.
Furthermore, consider the principles of the building envelope itself. Cutting a hole in a ceiling or an exterior wall creates a breach in the air and vapor barriers. This can lead to energy loss and, in colder climates, condensation within the wall cavity, potentially causing mold and rot over time. After the box is installed and the wiring is complete, it is best practice to seal the gap between the electrical box and the drywall with caulk or expanding foam sealant. Specialized foam gaskets designed to fit behind the cover plate can further enhance the seal, contributing to the home’s overall energy efficiency and longevity. This step elevates the task from a simple electrical installation to a holistic improvement that respects the integrity of the entire building system. By focusing on what’s behind the wall before the cut is ever made, you ensure the installation is not only precise but also profoundly safe, structurally sound, and conscientiously integrated into the home.
Final Thoughts: Precision is Paramount
Cutting the right size hole for a round electrical box is a foundational skill for both DIY enthusiasts and professional electricians. It’s a task where precision directly translates to safety and quality. By understanding the nuances of different box types, wall materials, and cutting techniques, you can approach every installation with confidence.
Remember to use the provided chart as a starting point, but always verify with the specific box you are using. Employ techniques like starting in reverse to prevent material damage, and choose the appropriate type of hole saw for the surface you are cutting. With the right tools and a methodical approach, you can ensure every round electrical box you install is secure, professional, and perfectly placed.
