The Ultimate Guide to Wiring a Switched GFCI Outlet: Pro Methods

Welcome. If you’re here, you understand the essential safety net a Ground Fault Circuit Interrupter (GFCI) provides. You also know the convenience a simple switch offers. The question is, how do you make them work together? How do you combine that life-saving protection with simple control?

You’ve come to the right place. We’re not just going to show you the standard methods you’ve seen elsewhere. We will walk through every common scenario, dive deep into advanced setups for workshops and smart homes, and give you the right knowledge to complete this project with confidence and, above all, safety. This is more than just connecting wires; it’s about creating a circuit that is both smart and secure.

Before we touch a single tool, our first and most important rule is safety. Working with electricity can be dangerous. Before starting, you must turn off the power at the circuit breaker that feeds the circuit you’re working on. Use a reliable voltage tester to confirm there is no power in the electrical box. For more essential tips, the Electrical Safety Foundation International (ESFI) is an excellent resource. If you have any hesitation, please stop and consult a qualified, licensed electrician. All our methods follow the principles of the National Electrical Code (NEC), the standard for safe electrical design in the United States.

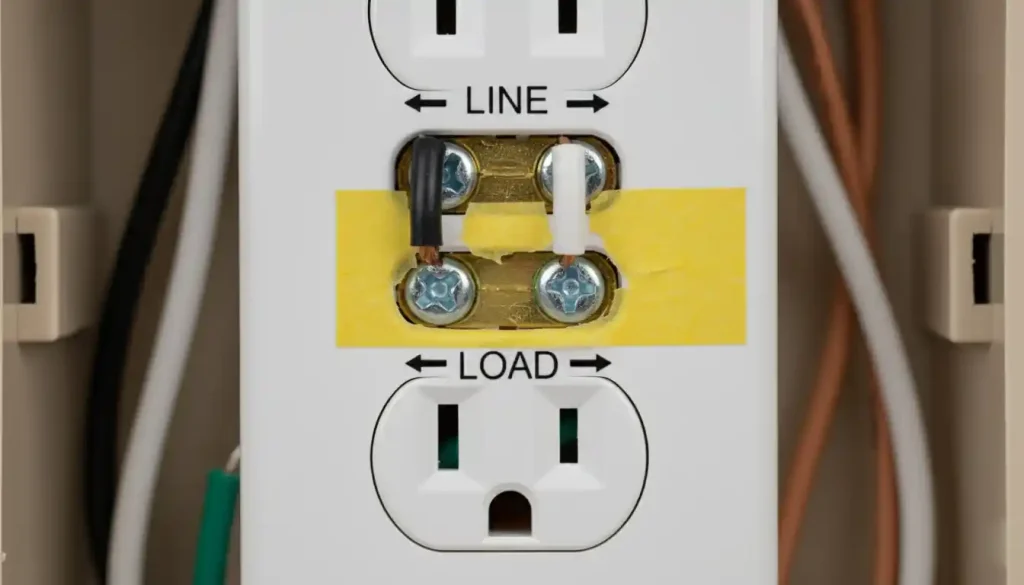

The Foundation: Understanding GFCI LINE vs. LOAD Terminals

The magic of a GFCI outlet lies in its two pairs of terminals. Misunderstanding this is the number one reason for installation failure.

• LINE Terminals: Think of this as the INBOX. These two terminals (one brass for the hot wire, one silver for the neutral) are where the incoming power from your breaker panel connects. The GFCI cannot function without power to the LINE terminals.
• LOAD Terminals: This is the OUTBOX. These terminals are used to extend GFCI protection to other devices “downstream” on the same circuit. Any standard outlet, light fixture, or fan connected to the LOAD terminals will be protected by that single GFCI. When the GFCI trips, it cuts power to its own sockets and to anything connected to its LOAD side.

This LINE/LOAD distinction is the key to all the different switched setups.

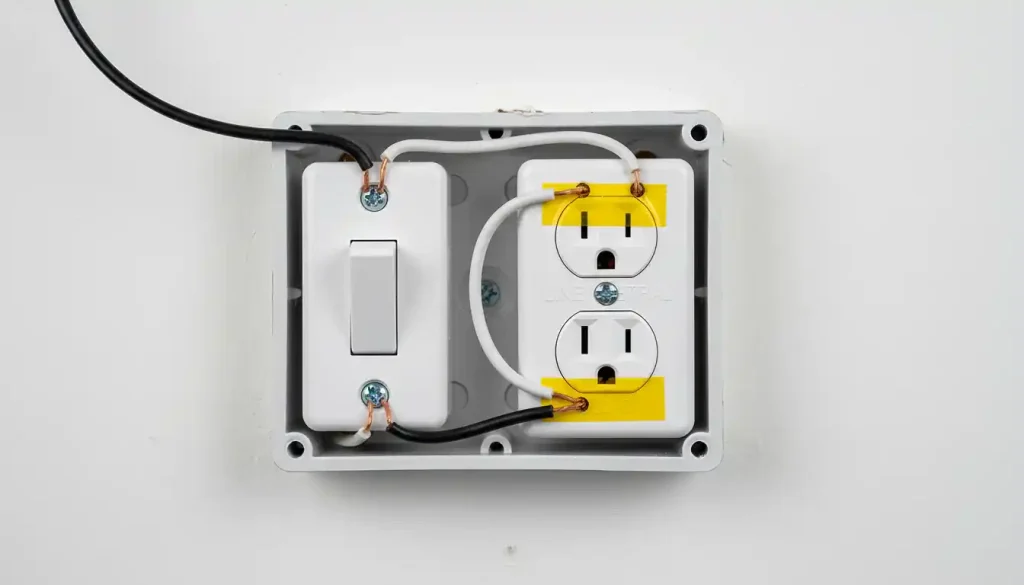

Method 1: The Classic – Switching the Entire GFCI Outlet

This is the most direct approach. The switch controls all power going to the GFCI. When the switch is off, the GFCI and anything plugged into it are completely dead.

Best For:

• Outdoor lighting transformers for landscape or holiday displays.
• Workshop tools like bench grinders or drill presses that you want to ensure are fully powered down.
• Pumps for ponds or fountains.
• Controlling point-of-use devices like a small, efficient piezoelectric water heater in a detached garage, ensuring it only draws power when the area is in use.

The Concept: We will route the main “hot” wire through the switch before it ever reaches the GFCI’s LINE terminal.

Step-by-Step Wiring (Power Enters Switch Box First):

1. Power In: In the switch box, connect the incoming hot (black) wire from the breaker panel to one of the brass terminals on your switch.
2. Switched Power Out: Connect a second black wire to the other terminal on the switch. This wire will carry the “switched hot” power over to the GFCI outlet box.
3. Neutral Connection: In the switch box, connect the incoming white (neutral) wire to the white wire heading to the GFCI box using a wire nut. The neutral does not connect to a standard switch.
4. At the GFCI: Connect the “switched hot” (black) wire coming from the switch to the brass LINE terminal on the GFCI.
5. GFCI Neutral: Connect the white (neutral) wire to the silver LINE terminal on the GFCI.
6. Grounding: Connect all bare copper or green ground wires together. Run a short “pigtail” from this bundle to the green ground screw on the switch and another to the green ground screw on the GFCI.
7. LOAD Terminals: Leave the protective tape on the LOAD terminals. They will not be used in this configuration.

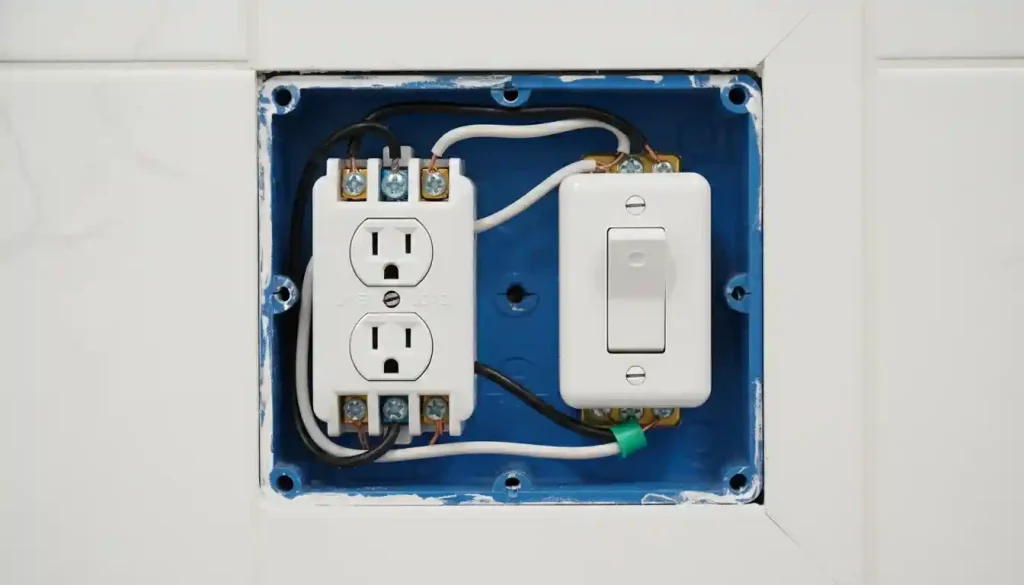

Method 2: The Bathroom Special – Constant Power GFCI, Switched Device

This is a very common and useful setup, especially in bathrooms and kitchens. The GFCI outlet remains powered on at all times, while providing protection to a separate device (like a light or fan) that is controlled by a switch.

Best For:

• A bathroom where you need constant power for a shaver or hairdryer at the GFCI outlet, but want to switch the vanity lights or exhaust fan separately.
• Under-cabinet kitchen lighting that you want switched, while keeping the countertop GFCI outlets always live.

The Concept: We power the GFCI directly from the panel using its LINE terminals. Then, we use the GFCI’s LOAD terminals as the protected power source for our switch and light/fan.

Step-by-Step Wiring:

1. Power to GFCI: Connect the incoming hot (black) and neutral (white) wires directly to the LINE terminals (brass and silver, respectively) of the GFCI.
2. Power from GFCI: Connect a new black wire to the brass LOAD terminal and a new white wire to the silver LOAD terminal. These wires will feed power to your switch and light.
3. To the Switch: Run the black wire from the LOAD terminal to one of the terminals on your switch.
4. To the Light/Fan: Run another black wire from the second terminal on the switch up to the black wire of your light fixture.
5. Neutral to Light/Fan: The white wire from the GFCI’s LOAD terminal bypasses the switch completely and connects directly to the white wire of the light fixture.
6. Grounding: Ensure everything is properly grounded back to the main ground wire bundle in the box.

---

Beyond the Basics: Pro-Level Setups You Won’t Find Elsewhere

This is where we can design truly smart solutions for today’s needs. These methods offer better functionality and show a deep understanding of electrical systems.

Method 3: The Originality Hack – The “Workshop Power Station”

The problem: You want a half-switched outlet, but you know you can’t break the tab on a GFCI. The solution: a 2-gang box that provides the best of all worlds: two always-on protected outlets and two switched protected outlets.

Best For:

• A workbench where you need constant power for battery chargers but switched control for task lighting and a shop vac.
• A media center where the TV and receiver need constant power, but you want to switch power to all the peripherals (game consoles, speakers) with one flick.

The Concept: We use a single GFCI to protect itself and a downstream standard outlet that is controlled by a switch, all within the same enlarged box.

Step-by-Step Wiring (in a 2-Gang Box):

1. Install GFCI: On one side of the box, install the GFCI. Connect the incoming panel power to its LINE terminals.
2. Feed the Switch: Connect a short black wire from the brass LOAD terminal of the GFCI to one terminal on your switch.
3. Install Switch & Outlet: Place your switch and a standard duplex outlet on the other side of the box.
4. Switched Hot to Outlet: Run a black wire from the second terminal on the switch to the brass terminals on the standard outlet.
5. Neutral to Outlet: Run a short white wire from the silver LOAD terminal of the GFCI to the silver terminals on the standard outlet.
6. Grounding: Pigtail all ground wires together and connect to the GFCI, the switch, and the standard outlet.

The result is a clean, code-compliant, and very functional power hub, all protected by a single, easily accessible GFCI.

Method 4: The Future-Proof – The Smart Switched GFCI Circuit

The problem: You want smart control (voice, app, schedules) on a circuit that requires GFCI protection, but you know that some smart switches can interfere with GFCIs, causing nuisance trips.

Best For:

• Smart control of outdoor landscape lighting or water features.
• Scheduling a towel warmer in a bathroom.
• Voice-controlling a garbage disposal connected to a GFCI-protected circuit under the sink.

The Concept: The basic idea is simple: the “brains” (the smart switch) must always be downstream from the “shield” (the GFCI). This protects the sensitive electronics of the smart switch and prevents electrical noise from tripping the GFCI.

Step-by-Step Wiring:

1. Isolate the GFCI: Wire your GFCI outlet as a standalone device. Connect incoming power to the LINE terminals and leave the LOAD terminals unused for now. Many smart switches require a neutral wire, which we will provide from the LOAD side.
2. Power the Smart Switch: Connect the hot and neutral wires for your smart switch (as per its instructions) to the LOAD terminals of the GFCI. This provides a dedicated, protected power source for the switch itself.
3. Connect the Load: Connect the “load” or “switched” wire from your smart switch to the device you wish to control (e.g., the garbage disposal or light fixture).
4. Complete the Circuit: Connect the neutral from the device back to the GFCI LOAD neutral wire bundle.
5. Grounding: Ensure the smart switch and the device are properly grounded.

This setup ensures full GFCI protection and reliable smart-home performance, a setup that often confuses DIYers.

Method 5: The Multi-Location Control (Using 3-Way Switches)

This method allows you to control a single GFCI outlet (or a string of outlets protected by it) from two or more separate locations. It’s the perfect solution for long rooms, hallways, or outdoor spaces with multiple entry points.

Best For:

• A workshop or garage where you want to turn on power to a bench tool outlet from two different doors.
• An outdoor GFCI outlet for a fountain or landscape lighting that you want to control from both the back door and a gate.
• Basements or long hallways with a convenience outlet that needs to be switched from either end.

The Concept: A pair of 3-way switches creates a circuit that can be opened or closed from either location. This switched circuit is then used to control the power feeding the LINE terminal of the GFCI. For control from three or more locations, one or more 4-way switches can be added between the two 3-way switches.

Step-by-Step Wiring:

1. Power In: Bring the incoming power from the panel into the first 3-way switch box. Connect the hot (black) wire to the “common” screw, which is usually black or a different color from the other two.
2. Traveler Wires: Run a 3-wire cable (containing black, red, and white wires, plus a ground) between the first and second 3-way switch boxes. Connect the black and red wires to the two “traveler” screws on the first switch. The white wire will be your neutral pass-through.
3. Connect Travelers: At the second 3-way switch box, connect the black and red traveler wires from the 3-wire cable to the two traveler screws on the second switch.
4. Switched Power Out: Connect a black wire to the “common” screw on the second 3-way switch. This is your final “switched hot” wire that will feed the GFCI.
5. Wire the GFCI: Run a 2-wire cable from the second switch box to the GFCI outlet box. Connect the “switched hot” wire to the brass LINE terminal on the GFCI. Connect the neutral wire (which has been passed through the switch boxes) to the silver LINE terminal.
6. Grounding: Ensure all ground wires are connected together and to each switch and the GFCI outlet.

Method 6: The Single-Box Solution (Using a GFCI/Switch Combo Device)

When space is tight and you need both GFCI protection and a switch in a single electrical box, this combination device is the most elegant solution. It integrates both components into one unit that fits a standard single-gang box.

Best For:

• Upgrading an old bathroom that has only one box for both the outlet and the fan or light switch.
• Adding a switched garbage disposal under a kitchen sink where the outlet must be GFCI-protected.
• Any retrofit situation where adding a second electrical box isn’t feasible.

The Concept: This device has an always-on GFCI outlet and an independent single-pole switch. Incoming power feeds the GFCI’s LINE terminals, which also provides power to the switch. The switch can then be used to control a separate load, like a light, fan, or disposal.

Step-by-Step Wiring:

1. Power In: Connect the incoming hot (black) and neutral (white) wires to the LINE terminals of the combo device.
2. Internal Connection: The device is internally wired to keep the GFCI outlet constantly powered from the LINE connection. Most models also have a lead or screw terminal to supply power to the integrated switch.
3. Connect the Switched Load: There will be a separate wire or screw terminal for the “switched” output. Connect the wire that goes to your light, fan, or garbage disposal to this terminal.
4. Complete Neutral Circuit: The neutral wire for your switched device (light/fan) should be connected to the bundle of neutral wires in the box.
5. Grounding: Connect the incoming ground wire to the green ground screw on the combo device.

Method 7: The Automated Timer Control

This setup provides GFCI protection to a device that you want to run for a specific, automated duration. It replaces a standard manual switch with an in-wall timer, adding a layer of convenience and energy efficiency.

Best For:

• A bathroom heat lamp or towel warmer that you want to turn on for 30 minutes at a time.
• An exhaust fan circuit to ensure it runs long enough to clear humidity.
• Circulation pumps for pools or hot tubs that need to run on a daily schedule.

The Concept: The GFCI outlet is wired to be always-on, providing a constantly protected power source. The LOAD terminals of this GFCI are then used to feed power to an in-wall timer switch. The timer then controls the downstream device. This ensures the timer’s electronics and the device it controls are both fully protected.

Step-by-Step Wiring:

1. Power the GFCI: Install a GFCI outlet in the first box. Connect the incoming panel power to the LINE terminals.
2. Feed the Timer: From the LOAD terminals of the GFCI, run a 2-wire cable to the timer switch box.
3. Wire the Timer: Connect the hot wire from the GFCI’s LOAD terminal to the timer’s “line” or “hot” input. Many digital timers require a neutral to power their screen; connect the white wire from the GFCI’s LOAD terminal to the timer’s “neutral” input.
4. Connect the Device: Connect the timer’s “load” output wire to the hot wire of the device you are controlling (fan, heater, pump).
5. Complete Neutral and Ground: Connect the device’s neutral wire to the other neutral wires. Ensure everything is properly grounded.

Method 8: The Split-Purpose Circuit (GFCI Protecting Mixed Loads)

This advanced method uses a single GFCI outlet to provide protection for two different types of switched loads, such as a lighting circuit and a motor circuit, controlled by separate switches.

Best For:

• An outdoor kitchen where one switch controls overhead lights and another switch controls an exhaust fan motor, with both requiring GFCI protection.
• A sophisticated workshop where one GFCI protects both a switched task-lighting circuit and a separate switched outlet circuit for tools.

The Concept: A single, always-on GFCI acts as the “safety hub.” The LOAD terminals feed power to two (or more) separate switches. Each switch then controls its own independent downstream circuit, but any ground fault on either circuit will trip the single master GFCI.

Step-by-Step Wiring (in a multi-gang box):

1. Power the GFCI: Connect the incoming panel power to the LINE terminals of the GFCI outlet.
2. Create a Power Feed: From the brass LOAD terminal, run a short wire (pigtail) to one terminal on Switch #1 and another pigtail to one terminal on Switch #2.
3. Wire Switched Loads:
   • From the second terminal of Switch #1, run the hot wire to your first load (e.g., lights).
   • From the second terminal of Switch #2, run the hot wire to your second load (e.g., a fan or another outlet).
4. Distribute Neutrals: From the silver LOAD terminal of the GFCI, run a neutral wire to your first load and a separate neutral wire to your second load. Connect them with pigtails as needed.
5. Grounding: Connect all ground wires together and to the GFCI and both switches. Now, both the lights and the fan are independently switched but centrally protected.

Method Selection Guide: Which Setup is Right for You?

Method	Common Applications	Pros	Cons	DIY Difficulty
1. Classic Switched GFCI	Outdoor lights, workshop tools, pumps	Simple, easy to understand wiring.	The entire outlet is unusable when the switch is off.	★★☆☆☆
2. Constant Power GFCI	Bathrooms (outlet + light/fan), kitchens	Keeps outlet live while controlling another device.	Requires understanding the LOAD terminals correctly.	★★★☆☆
3. Workshop Power Station	Workbenches, media centers	Very versatile; provides both switched and constant power.	Requires a larger 2-gang box and more internal wiring.	★★★★☆
4. Smart Switched Circuit	Smart homes, scheduled devices, outdoor features	Adds automation and remote control.	Requires a smart switch compatible with GFCI circuits; wiring can be complex.	★★★★★

Essential Tools and Materials

Before you begin, gather your supplies. Using high-quality, safety-certified materials ensures your installation is safe and durable. Look for the mark from a recognized lab like Underwriters Laboratories (UL) on all your components.

• Safety First: Voltage Tester, Safety Glasses
• Outlets/Switches: GFCI Outlet (15A or 20A), Single-Pole Switch, Standard Outlet (for Method 3)
• Wiring: 12-gauge or 14-gauge Romex NM-B cable (match your circuit’s gauge)
• Tools: Wire Strippers, Lineman’s Pliers, Needle-Nose Pliers, Phillips and Flathead Screwdrivers, Utility Knife
• Connectors: Wire Nuts (various sizes), Electrical Tape

Final Thoughts: Building with Confidence

Wiring a switched GFCI outlet is a project that perfectly combines safety and modern convenience. By understanding the fundamental principles of the LINE and LOAD terminals, you can move beyond basic installations to create customized, highly functional circuits that meet your exact needs.

Whether you’re implementing the classic control for your holiday lights or designing a sophisticated smart-home solution for your patio, the key is a step-by-step approach. Plan your circuit, turn off the power, test everything, and build a clean, secure installation. By doing so, you’re not just adding a switch; you’re enhancing your home’s electrical system with the highest standards of safety and smart design.thumb_upthumb_down
