There are few home improvement frustrations as disheartening as a brand-new fence that begins to lean and wobble after just a few seasons. You invested time, money, and hard work, only to see your efforts undone by the immense, unseen forces at play in the ground beneath. This common problem almost always stems from a single point of failure: an inadequate foundation.
Many well-intentioned DIYers and even some contractors skip a crucial step, believing that simply digging a hole and filling it with concrete is enough. Unfortunately, this shortcut leads to premature failure, turning a long-term investment into a recurring headache. The real, lasting solution lies in adopting a professional technique that isolates the concrete footing from the disruptive power of the earth.
The Unseen Enemy: Why Most Fence Post Foundations Fail
The ground beneath your yard is not a static, solid mass. It is a dynamic environment, constantly shifting due to moisture content and temperature changes. These forces are the primary culprits behind failing fence posts, specifically through two mechanisms: frost heave and soil pressure.

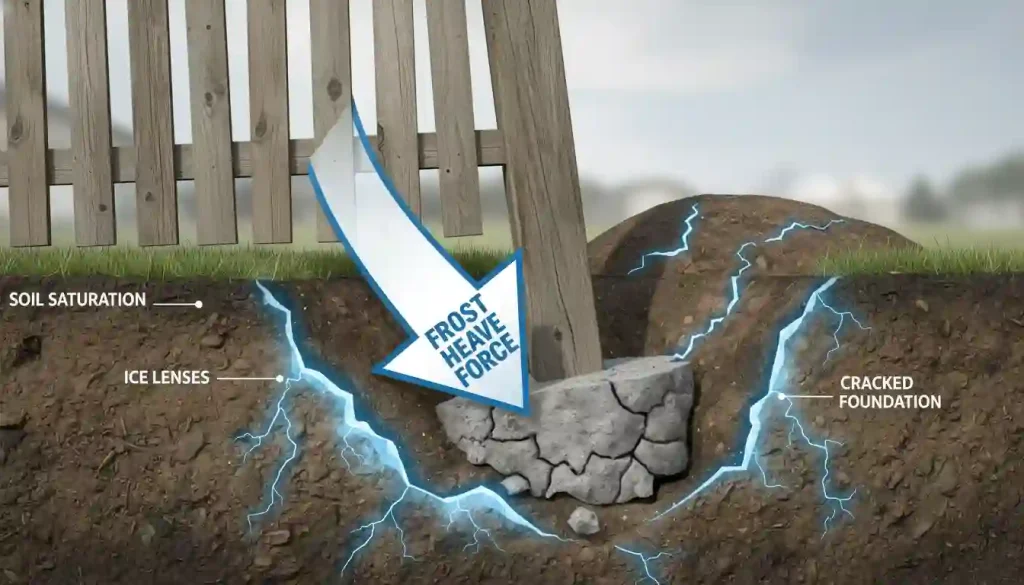

Frost heave is an incredibly powerful geological force. When water in the soil freezes, it expands with enough force to lift posts, crack foundations, and buckle pavement. A concrete footing poured directly into a rough, jagged hole gives the frozen ground a perfect grip to push the entire post upward, compromising the fence’s stability year after year.
Furthermore, pouring wet concrete directly into an earthen hole allows soil and organic matter to mix in. This contamination weakens the concrete’s structural integrity from the start. It also creates a rough, porous surface that acts like a sponge, wicking moisture from the surrounding ground and holding it directly against the wooden post, which is a recipe for accelerated rot.
The Professional Solution: Creating a Perfect Pier with Sonotubes
The secret to a fence that stands straight and true for decades is to create a strong, isolated, and perfectly formed concrete pier for each post. This is where Sonotubes for fence posts become an indispensable tool. A Sonotube is a brand name for a heavy-duty cardboard tube designed to be used as a mold for concrete.
By placing a Sonotube in the hole before pouring the concrete, you create a smooth, uniform barrier between the footing and the surrounding soil. This simple step solves the core problems that plague lesser installation methods. The smooth sides of the formed concrete pier give frost heave nothing to grab onto; the frozen soil simply slides past the column instead of lifting it. It also ensures your concrete mix remains pure and strong, free from soil contamination.
Your Step-by-Step Guide to Bulletproof Fence Post Footings
Using Sonotubes is a straightforward process that adds a professional touch and immense longevity to your fence project. Following these steps ensures each post has a rock-solid foundation built to withstand the elements.
1. Planning and Excavation
First, lay out your fence line and mark the location of each post. Before digging, always call 811 to have underground utility lines marked. The depth of your holes is critical; they must extend at least 6 inches below your local frost line to prevent heaving. The diameter should be about three times the width of your post; for a standard 4×4 post, an 8-inch or 10-inch diameter Sonotube is ideal, requiring a hole of that size.
2. Creating a Drainage Base
This is a critical step many people miss. Pour 4 to 6 inches of coarse gravel or crushed stone into the bottom of each hole and compact it firmly with the end of your post. This gravel base provides a crucial drainage field, allowing water that gets down to the base of the footing to harmlessly dissipate into the ground instead of pooling around the post and causing rot.

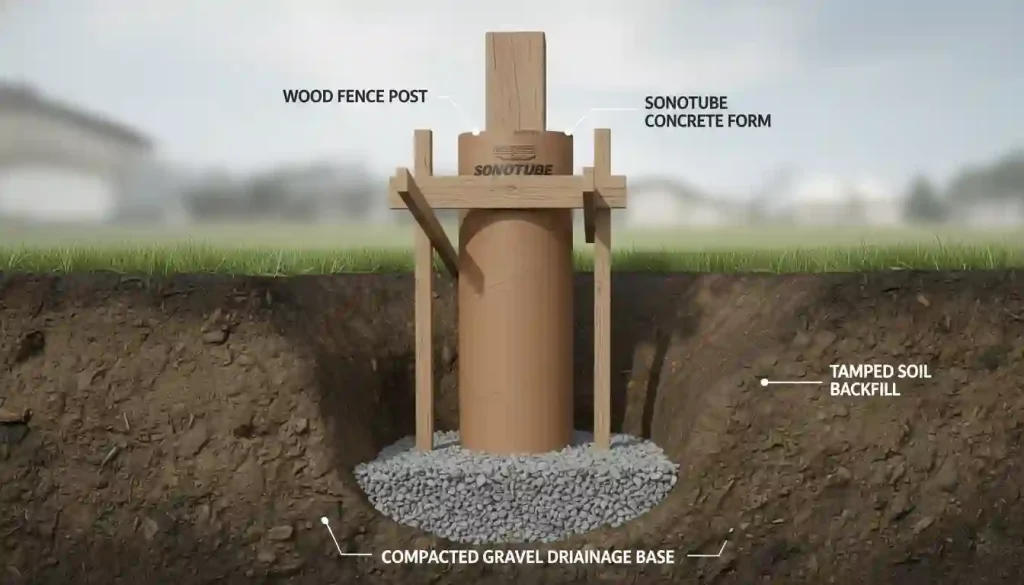

3. Cutting and Placing the Sonotube
Measure and cut your Sonotube so that it rests on the gravel base and extends 2 to 4 inches above the ground level. This slight extension is key for moisture protection. Place the cut tube into the hole and use a level to ensure it is perfectly plumb (vertically straight).
4. Backfilling and Securing the Tube
With the tube in position, begin backfilling the space around the outside of the Sonotube with the soil you excavated. Add the soil in 6-inch layers, tamping it down firmly after each layer. This process locks the tube securely in place, preventing it from shifting when you pour the concrete.
5. Setting and Bracing the Post
Place your fence post in the center of the Sonotube. Use a level on two adjacent sides to ensure the post itself is perfectly plumb. Secure it in this position using temporary braces made from scrap 2x4s screwed to the post and staked into the ground. The post must not move during the concrete pour.
6. Mixing and Pouring Concrete
Mix a batch of standard concrete mix (such as Quikrete) according to the manufacturer’s instructions, aiming for a thick, oatmeal-like consistency. Shovel the concrete into the Sonotube, working in layers and periodically poking a stick or piece of rebar into the mix to eliminate air pockets. Fill the tube to the very top.

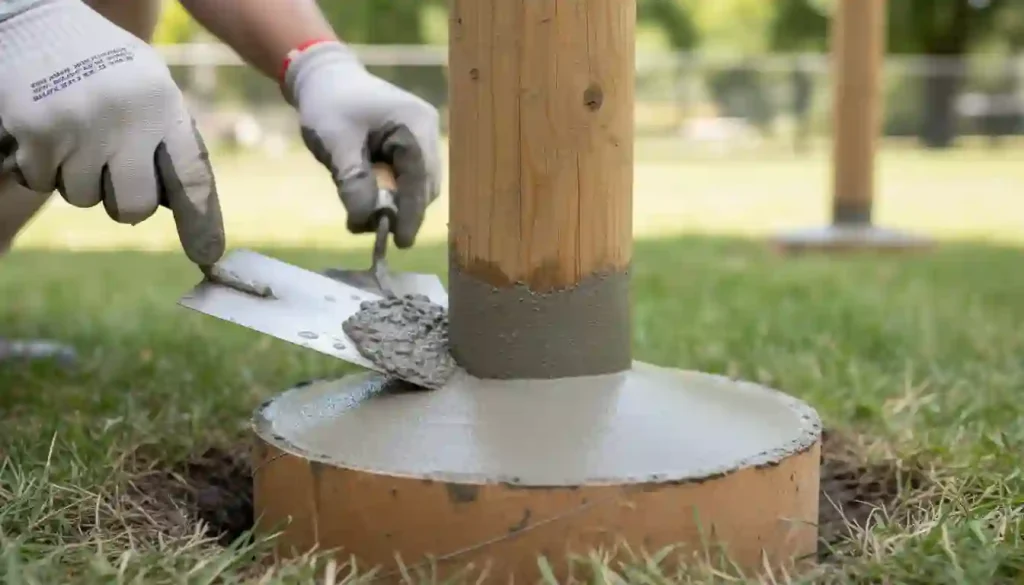

7. The Critical Finishing Touch: Shedding Water
With the Sonotube full, use a trowel to shape the top of the wet concrete into a dome or slope that angles down and away from the fence post. This ensures that rainwater runs off the concrete and away from the wood, dramatically reducing the chances of rot right at the most vulnerable point—the ground level. This simple technique is one of the most effective ways to preserve your posts.
8. Curing and Completion
Allow the concrete to cure for at least 24-48 hours before removing the temporary braces and beginning the construction of your fence panels. The concrete will continue to gain strength for weeks, but it will be stable enough for fence construction after a couple of days.
Mastering Frost Heave: The Bell-Shaped Footing Advantage
For the ultimate protection in regions with severe frost, you can enhance the Sonotube method by creating a bell-shaped footing. This involves widening the very bottom of the hole before you add the gravel and place the tube. The concrete then fills this wider base, creating an anchor that is shaped like a bell or an “elephant foot.”
This wider base, locked deep below the frost line, provides immense resistance to uplift. The force of the frost heave cannot lift a footing that is physically wider than the hole above it. This advanced technique, combined with the smooth sides of the Sonotube pier, creates a foundation that is virtually immune to frost movement.
Comparing Fence Post Footing Methods
Understanding the pros and cons of different installation techniques highlights why the Sonotube method is superior for long-term stability.
| Feature | Direct Concrete Pour (No Form) | Sonotube Formed Pier |
|---|---|---|
| Frost Heave Resistance | Poor – Rough sides allow frost to grip and lift the post. | Excellent – Smooth sides prevent frost from gripping the pier. |
| Post Rot Prevention | Fair – Concrete holds moisture against the wood post. | Excellent – Elevated and sloped concrete collar sheds water away from the post. |
| Concrete Strength | Good – Susceptible to weakening from soil and water mixing in. | Excellent – Pure concrete mix is isolated from contaminants. |
| Professional Finish | Poor – Results in a messy, uneven finish at ground level. | Excellent – Creates a clean, uniform, and professional-looking concrete collar. |
| Upfront Effort | Low – The quickest and easiest method. | Moderate – Requires the extra steps of placing and backfilling the tube. |
| Long-Term Durability | Poor to Fair – Prone to shifting, heaving, and causing post rot within years. | Excellent – Creates a foundation designed to last for decades. |
Common Mistakes and How to Avoid Them
Even with the right materials, small mistakes can compromise your project. Be mindful to avoid these common pitfalls for a flawless installation.
Not Digging Deep Enough: The number one mistake is failing to dig below the regional frost line. This depth is non-negotiable for preventing frost heave. Always check with your local building authority for the required depth in your area.
Forgetting the Gravel Base: Skipping the drainage layer at the bottom of the hole traps water, creating a “bowl” that holds moisture against the bottom of your post. Proper drainage is essential, and good water management is similar to learning how to drill holes in a patio for drainage; it directs water away from where it can cause problems.
Leaving a Flat Top: A flat concrete top around the post will collect water, creating a miniature pool that saturates the wood. Always slope the concrete collar away from the post to ensure water sheds off completely.
Improper Bracing: If the post is not perfectly plumb and rigidly braced before you pour, it will almost certainly shift as the concrete is added. Double-check your levels right before and immediately after the pour to ensure everything stays perfectly aligned.
The Unspoken Trade-Off: Planning for Repair, Not Just Permanence
The “bulletproof” foundation you describe, particularly the bell-shaped footing, is designed to be virtually permanent and immovable. This is a fantastic goal for the fence as a whole, but it creates a significant challenge if a single component—a post—fails. Fence posts can be damaged for reasons that have nothing to do with foundation failure, such as:
- A vehicle backing into the fence.
- Damage from a falling tree limb.
- Severe rot or insect damage that occurs above the concrete collar.
- A desire to change a gate location years later.
With a standard Sonotube pier, and especially with an anchored bell-footing, removing and replacing a single damaged post is an immense task. It often involves a sledgehammer, a jackhammer, or extensive digging to remove the massive concrete anchor. This reality is in direct contrast to an alternative professional method that prioritizes ease of replacement: setting posts in compacted gravel instead of concrete.
While setting posts only in gravel may offer slightly less resistance to lateral forces, it provides adequate stability for most residential fences while allowing for excellent drainage. Its most significant, and rarely mentioned, advantage is that a damaged post can be dug out and replaced with relative ease. The bell-shaped footing method creates a foundation that is physically wider than the hole above it, making removal incredibly difficult without major excavation.
Therefore, the truly original consideration for a homeowner is not just “How do I make my fence last forever?” but also “How do I plan for the inevitable reality of future repairs?” The choice of foundation method is a strategic one:
- Maximum Stability (Sonotube with Bell Footing): Ideal for critical structural posts, like those for gates, or for fences in areas with extreme frost heave and unstable soil. The builder accepts the major effort that will be required if a post ever needs replacement.
- Balanced Approach (Standard Sonotube Pier): Offers excellent longevity and resistance to frost heave while being slightly less difficult to remove than a bell footing.
- Ease of Repair (Gravel/Crushed Stone): A viable option in many soil conditions that makes future post replacement a manageable DIY task.
By failing to discuss this trade-off, most guides present permanence as the only goal. A truly comprehensive plan, however, acknowledges the entire lifecycle of the fence and incorporates a strategy for maintenance and repair from the very first step of digging the foundation.
Conclusion: Build it Once, Build it Right
Building a fence is a significant undertaking, and its success is entirely dependent on the quality of its foundation. While using Sonotubes for fence posts requires an extra step and a bit more effort upfront, it is the defining factor between a short-lived fence that requires constant repairs and a permanent structure that adds value and security to your property for decades.
By creating an isolated, perfectly formed, and well-drained concrete pier, you are not just setting a post in the ground; you are engineering a foundation designed to defeat the powerful forces of nature. The final coat of paint, whose longevity is a concern much like the question of how long does paint stay mixed, will look its best for years to come on a fence that stands straight and true, a testament to a job done the right way from the ground up.
