You’re planning a kitchen island, finishing a basement bathroom, or simply reconfiguring a room, and you hit a snag: the plumbing vent. The most direct path for the new drain’s vent pipe seems to be straight through an exterior wall. But is that allowed? Is it safe? While running a plumbing vent through the roof is the traditional and most common method, terminating a vent through a side wall is a viable solution in many situations, provided you follow strict building code requirements.
Ignoring these rules isn’t just a minor oversight; it can lead to failed inspections, noxious sewer gas entering your home, and poor drainage. This guide breaks down the critical code requirements, step-by-step installation procedures, and common mistakes to ensure your project is done right the first time.
Why Your Plumbing System Desperately Needs a Vent
Before diving into the specifics of wall vents, it’s essential to understand why venting is non-negotiable in any plumbing system. The entire network of pipes in your home is part of a Drain-Waste-Vent (DWV) system. The “vent” portion is critical for two primary reasons: it allows air to enter the pipes behind draining water and provides an escape route for sewer gases.
Without a proper vent, as water flows down a drain, it can create a negative pressure or vacuum behind it. This suction is powerful enough to siphon all the water out of a fixture’s P-trap—that U-shaped pipe under your sink. The P-trap’s job is to hold a small amount of water that acts as a barrier against sewer gas. An empty trap is an open invitation for unpleasant and potentially harmful gases to enter your living space.
Can You Terminate a Plumbing Vent Through an Exterior Wall?
The short answer is yes, you can, but it’s heavily regulated. Both the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), which most local jurisdictions adapt, have specific rules for side-wall vent termination. The primary goals of these codes are to prevent sewer gas from re-entering the building through windows, doors, or air intakes and to protect the vent from blockages.
While a roof termination is generally preferred because it disperses gases high above the living space, a wall vent can be a necessary solution for certain architectural challenges. These include homes with flat roofs, additions where a roof penetration is impractical, or situations like a kitchen island sink where a direct vertical path is impossible.
Decoding the Building Codes: Wall Vent Termination Rules
Navigating plumbing codes can be complex, and you must always consult your local building authority for the specific regulations in your area. However, most codes are based on the IPC or UPC, which share similar fundamental requirements for safety and function. Failure to adhere to these clearances is a common reason for failed plumbing inspections.
Below is a summary of typical requirements for terminating a plumbing vent through an exterior wall. These are general guidelines and your local code may have stricter rules.
| Requirement | Typical Minimum Distance (IPC/IRC) | Purpose |
|---|---|---|
| From openable windows, doors, or air intakes | 10 feet horizontally, UNLESS the vent is at least 3 feet above the opening. | Prevents sewer gas from being drawn into the home. |
| Directly beneath windows or openings | Not permitted if less than 4 feet below the opening. | Prevents rising sewer gas from entering an open window. |
| Above grade (ground level) | 10 feet above the highest grade within a 10-foot horizontal radius. | Keeps the vent opening away from people and surface-level air currents. |
| From property lines | 10 feet | Avoids venting sewer gas directly onto a neighboring property. |
| Underneath a ventilated soffit | Not permitted. | Prevents sewer gas from being drawn into the attic through soffit vents. |
| Protection of opening | Must be fitted with a screen or cap. | Prevents birds, rodents, and debris from entering and blocking the vent. |
Cold Climate Considerations: The Threat of Frost Closure
If you live in a region with freezing temperatures, there’s an additional, critical consideration: frost closure. As warm, moist air from the sewer system exits the vent pipe into the cold outside air, the moisture can freeze on the inside of the pipe. Over time, this ice can build up and completely block the vent opening.
A blocked vent leads to the same problems as no vent at all: slow drains, gurgling noises, and siphoned traps. To combat this, codes in cold climates often require vent pipes that penetrate a roof or wall to be increased to a minimum of 3 inches in diameter. This increase must happen at least 1 foot inside the building’s thermal envelope to prevent the choke point itself from freezing.
Step-by-Step Guide: Installing a Side Wall Plumbing Vent
With a clear understanding of the rules, the installation process is straightforward. This guide assumes you are working with common PVC or ABS plastic pipes.
Phase 1: Planning and Preparation
Consult Local Codes: This cannot be overstated. Obtain a permit if required and confirm all clearance distances with your local building department before you drill any holes.
Choose the Location: Using a tape measure, meticulously map out a location on your exterior wall that meets all required clearances from windows, doors, soffits, and property lines.
Map the Pipe Run: Plan the path of the vent pipe from the fixture’s drain to the exterior wall. Ensure that any horizontal sections of the vent pipe are sloped slightly (at least 1/4 inch per foot) back towards the drain to allow any condensation to drain away.
Phase 2: Materials and Tools
Gather your materials before you begin. You will likely need:
- PVC or ABS pipe and fittings (sanitary tees, elbows) of the appropriate diameter.
- The proper solvent cement (primer and glue) for your pipe type.
- A drill with a hole saw appropriately sized for your pipe’s outside diameter.
- A quality exterior-grade silicone or polyurethane caulk.
- A protective vent cap or screen designed for side-wall termination.
- Flexible flashing tape and/or a pipe flashing boot.
Phase 3: Execution – Drilling and Installation
Drill the Penetration Hole: Once you’ve confirmed your location, drill a clean hole through the exterior wall from the inside out. To promote drainage of any rainwater, angle the hole slightly downward toward the exterior.
Run the Pipe: Dry-fit your pipe run from the drain connection to the exterior wall to ensure everything lines up. Once you are satisfied with the fit, use primer and solvent cement to permanently join the sections. Proper pipe joining is crucial; for some transitions, understanding how to join pvc pipe with a rubber coupling can be useful for repairs, though solvent welding is standard for new vent installations.
Install the Vent Cap: Push the final section of pipe through the wall so it extends a few inches outside. Cut it to the desired length and install the protective vent cap according to the manufacturer’s instructions. These caps are designed to prevent debris and pests from entering while allowing air to flow freely.
Phase 4: The Critical Final Seal
An improper seal is a gateway for water, air, and pests. Seal the penetration point both inside and out. On the exterior, use flexible flashing tape around the pipe, followed by a generous bead of high-quality exterior sealant. On the interior, seal the gap between the pipe and the drywall. Ensuring a proper interior seal is an important step before you finalize your wall finishes, much like when you hang drywall on 10 foot walls and need to work around outlets and other fixtures.

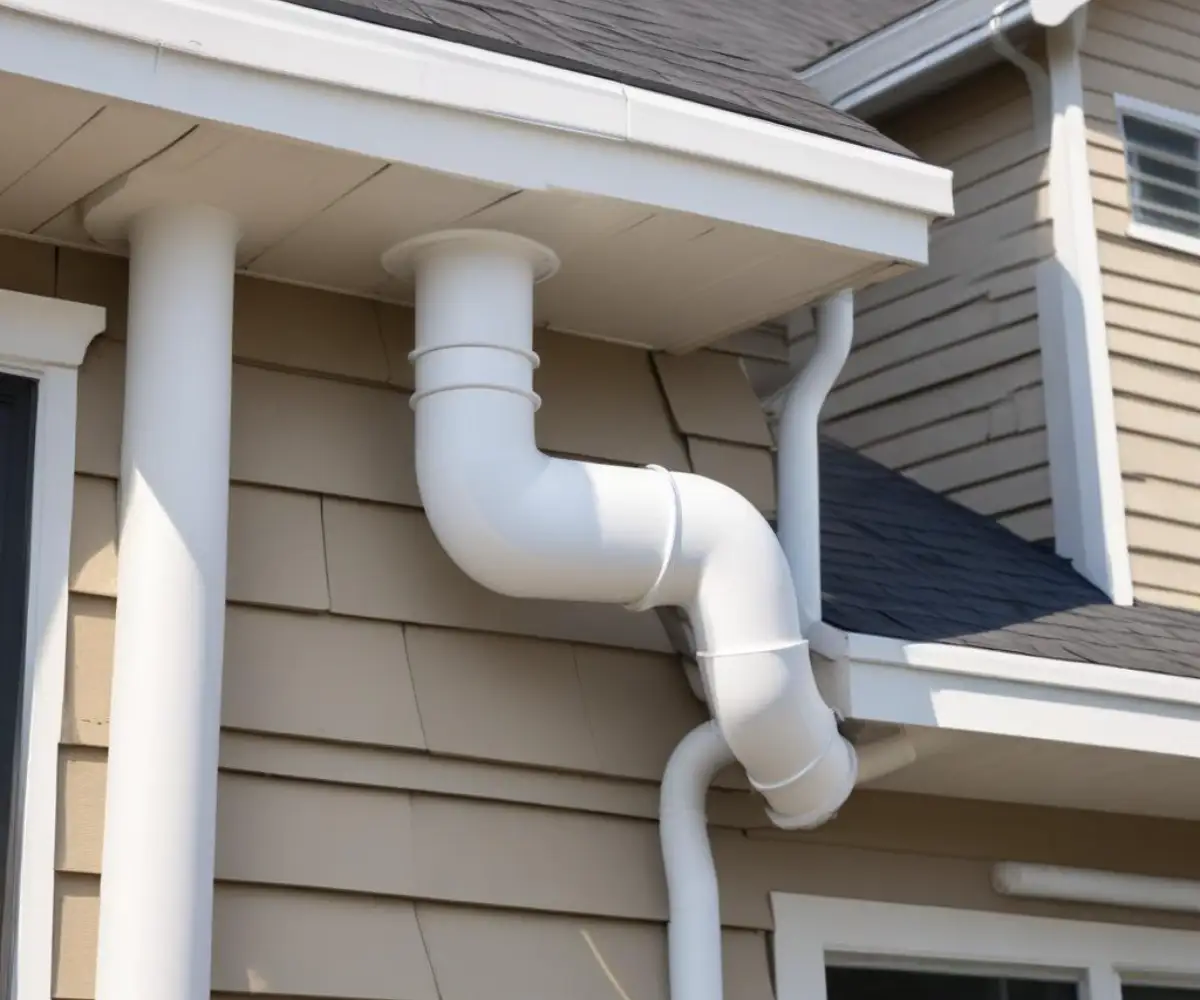

Beyond the Pipe: Integrating the Vent with Your Home’s Exterior
Functionality and code compliance are paramount, but aesthetics matter. A stark white PVC pipe sticking out of your siding can be an eyesore. To minimize the visual impact, consider painting the exterior portion of the vent pipe and the cap. Use a paint that is specifically formulated for plastics and match it to your home’s siding color.
For a more integrated look, some manufacturers offer architectural vent covers that are more discreet and stylish than standard caps. These can be a great option for highly visible areas, ensuring your code-compliant solution doesn’t detract from your home’s curb appeal.
Top 5 Mistakes to Avoid with Exterior Wall Vents
1. Ignoring Local Codes: Assuming that national codes are sufficient is a critical error. Local amendments always take precedence.
2. Wrong Location: Placing a vent too close to an operable window is one of the most common and dangerous mistakes. Always measure your clearances carefully.
3. Improper Sealing: A poor seal around the wall penetration can lead to significant water damage, rot, and pest infestations inside your walls over time.
4. Forgetting About Frost: In cold climates, failing to increase the pipe diameter can render your vent useless in the dead of winter.
5. No Slope on Horizontal Runs: Horizontal vent pipes must be sloped to drain. A flat or negatively sloped pipe can trap moisture, leading to blockages or odors.
Smart Alternatives: When a Wall Vent Isn’t the Best Option
Sometimes, an exterior wall vent isn’t feasible or ideal. In these cases, you have other code-approved options to consider.
Air Admittance Valves (AAVs)
Also known as Studor vents, an AAV is a one-way mechanical valve that is installed on a drain line inside the home. It opens to allow air into the drain when negative pressure is detected but remains closed otherwise, preventing sewer gas from escaping. AAVs are a great solution for single fixtures or small groups of fixtures, but they are not a replacement for a home’s primary vent stack, which must still terminate outdoors.
Connecting to an Existing Vent Stack
Often, the best solution is to tie into an existing vent. While it may require more pipe and work to run a new vent line through walls or joists to an existing main vent stack, it avoids the need for a new exterior penetration altogether.
Long-Term Health: Protecting Your Wall Structure
The importance of perfectly sealing the wall penetration goes beyond just passing an inspection. A tiny gap or a failed bead of caulk can allow moisture to wick into your wall cavity. Over months and years, this slow, persistent water intrusion can saturate insulation, rot wooden studs, and create an ideal environment for mold and mildew growth.
This hidden damage can compromise your home’s structural integrity and air quality. When sealing the penetration, think in layers. Use a primary flashing material like a flexible pipe boot or flashing tape applied directly to the sheathing, under the house wrap. The exterior siding provides the first line of defense, and a high-quality, UV-stable sealant around the pipe is the final, critical barrier.
Beyond the Code: The Unspoken Dimensions of Wall Venting
Beyond the explicit rules lies a deeper integration of plumbing with building science, material longevity, and even legal considerations that are rarely discussed.
Here is an analysis that touches on the hidden complexities and holistic considerations of terminating a plumbing vent through a wall.

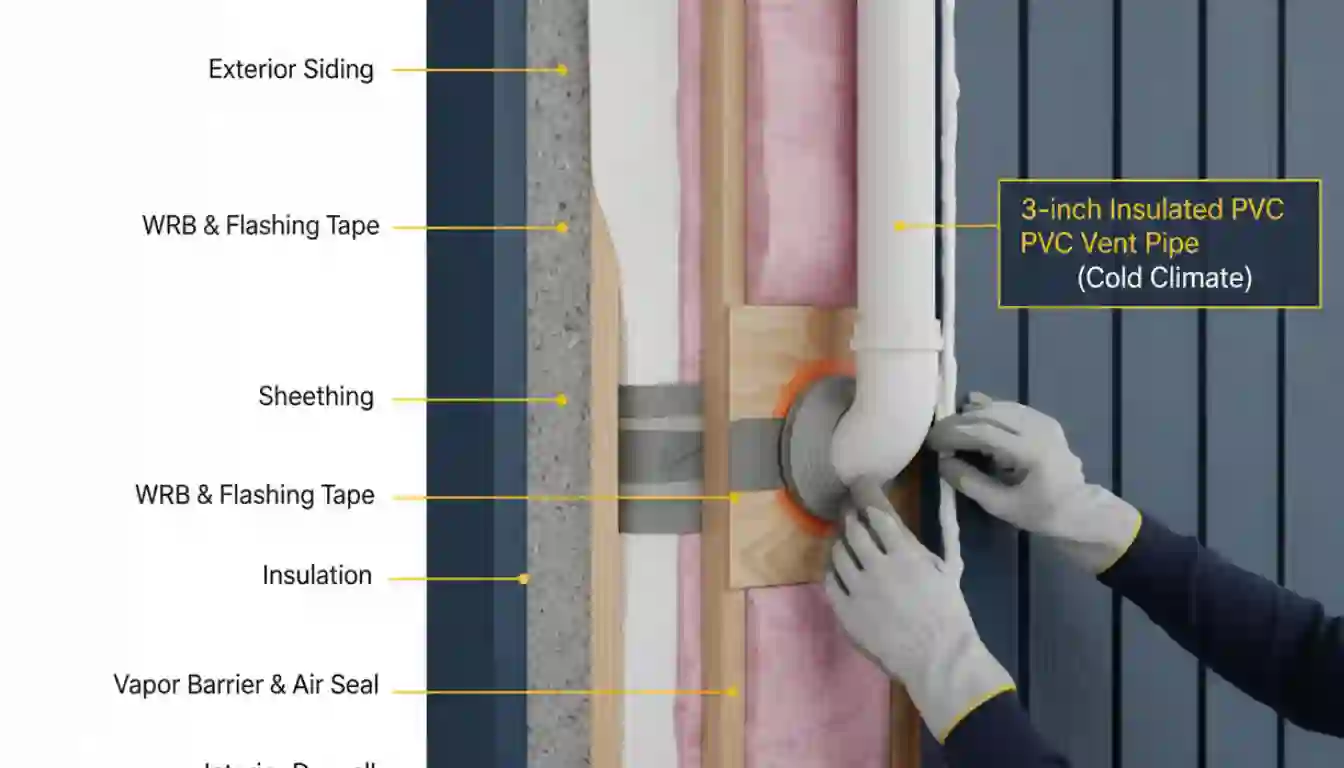

1. The Vent as a Building Envelope Puncture: A Building Science Perspective
It’s crucial to frame this not just as plugging a hole, but as maintaining the integrity of the building envelope’s critical control layers: water, air, thermal, and vapor.
- The Sequence of Sealing is Everything: A simple bead of caulk on the siding is the last line of defense, not the only one. Best practice, especially in modern, energy-efficient construction, involves sealing the pipe to the sheathing with high-quality flashing tape or a specialized pipe flashing boot. This seal is then lapped by the home’s Weather-Resistive Barrier (WRB), creating a shingle-like effect that directs any incidental water out and away. The final siding and exterior caulk are merely the primary defenses; the real protection is hidden within the wall assembly.
- Air Leakage and Thermal Bridging: An improperly sealed vent penetration is a significant source of air leakage. This can reduce your home’s energy efficiency by allowing conditioned air to escape and unconditioned air to enter. Furthermore, the pipe itself acts as a thermal bridge, conducting cold from the outside into the wall cavity. While minor, in cold climates, this can lead to localized condensation and moisture issues on the interior wall if not properly air-sealed from the inside.
2. The Chemistry of Sewer Gas and Material Longevity
The discussion often stops at the unpleasant smell of sewer gas, but its chemical composition has long-term implications for the materials it touches.
- Corrosive Effects: Sewer gas contains compounds like hydrogen sulfide, which can form sulfuric acid in the presence of moisture. While highly diluted, over decades this can have a corrosive effect on certain building materials. The 10-foot clearance from property lines isn’t just a “good neighbor” rule to avoid odors; it’s also a practical measure to prevent the long-term, slow degradation of a neighbor’s siding, metal flashing, or window frames.
- UV Degradation of Plastics: Standard PVC and ABS are not UV-stable. Sunlight will break down the plastic over time, making it brittle and prone to cracking. A simple coat of paint is a good first step, but it must be a paint specifically formulated for plastic and will require maintenance. For a truly “install-and-forget” solution in a highly visible or sun-drenched location, specifying a UV-resistant vent cap or even using a more durable material like cast iron or copper for the final termination piece is a superior, though more costly, approach.
3. Architectural Integration vs. Aesthetic Afterthought
Too often, a side-wall vent is treated as a problem to be solved during the build, resulting in an unsightly pipe that detracts from the home’s exterior. High-end architecture treats it as a design element to be integrated from the start.
- Concealment and Camouflage: Architects may design a thickened wall section or a small chase specifically to house the vent pipe, allowing it to emerge from a more discreet location. The termination itself can be hidden within or behind architectural features like trellises, decorative screens, or integrated into the pattern of a rainscreen siding system.
- The Rise of Designer Vent Covers: The market for architectural vent covers is growing. These products, made from materials like powder-coated aluminum, resin, or copper, transform a functional necessity into a deliberate design choice. They offer a far more elegant solution than a standard plastic cap and can be matched to the home’s style, be it modern, traditional, or craftsman.
By considering these deeper aspects, the conversation about a side-wall vent shifts from a simple plumbing task to a multi-disciplinary challenge that involves building science, material durability, and thoughtful design. Adhering to the code ensures your system is safe and functional; integrating these broader principles ensures it is also efficient, durable, and aesthetically pleasing for the life of the home.
Conclusion: Venting with Confidence
Running a plumbing vent through an exterior wall is a perfectly acceptable and safe practice when done correctly. The key is a thorough understanding of the specific code requirements that govern its location and installation. By prioritizing safety, adhering to local regulations, and paying close attention to details like slope and sealing, you can create a functional and durable venting solution for even the most challenging plumbing projects. When in doubt, consulting with a licensed plumber is always the wisest course of action.
