In the never-ending pursuit of a smarter, more effective home, just about any appliance has been redesigned for the 21st century. Refrigerators procure our shopping, thermostats learn our routines, and light bulbs can simulate the dawn.
But secretly stashed in a closet or basement, the humble water heater is a brute-force relic—a gigantic, insulated tank that uses fuel or electricity day and night to keep a colossal tank of hot water on standby, just in case we may need it. It is a technology defined by inefficiency and energy squandering.
What if warming water were as beautiful and easy as the technology in our smartphones? What if, instead of a hot fire or a heated piece of metal, the solution to instant hot water was sound? It’s the exciting prospect of the piezoelectric water heater, a concept which sits at the cutting edge of materials science and fluid dynamics.
It’s a technology that guarantees a future of small-scale, on-demand, and very efficient hot water at the press of a button. It is a technology whose most profound challenges are never, or virtually never, part of the public conversation, revealing an ugly truth that lurks only an inch or so below the surface of its glistening promise.
Piezoelectric Heating: From Sound to Steam

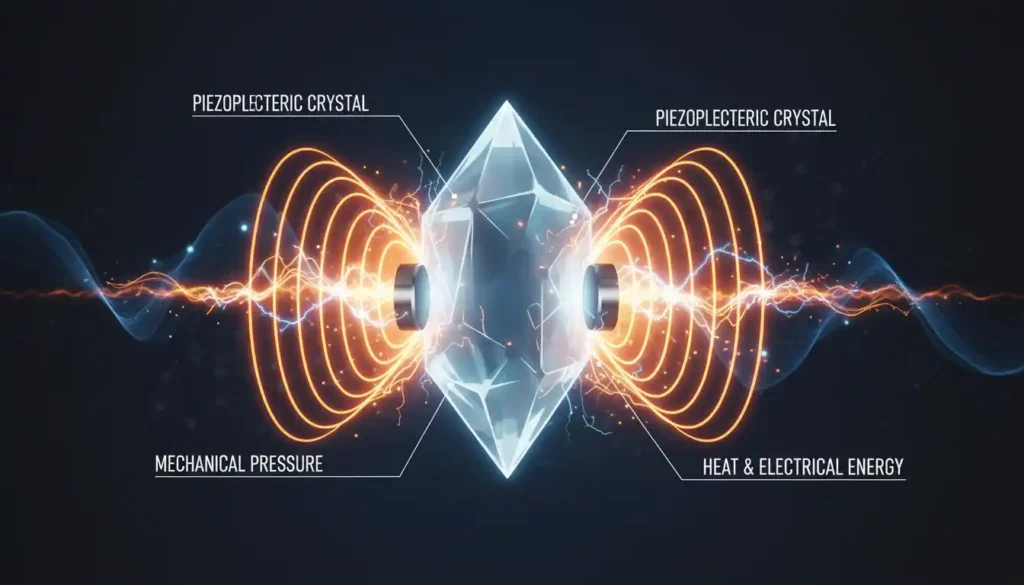

To understand the potential of this technology, one first must understand the almost magical property at its core: the piezoelectric effect.
French brothers Jacques and Pierre Curie first found it in the 1880s. It describes how certain crystalline materials, like quartz, can generate an electrical charge when they are subjected to mechanical pressure. Press on the crystal, and it creates a voltage. It’s the mechanism behind the spark in most BBQ lighters.
But the piezoelectric water heater takes advantage of the reverse of this effect, the inverse piezoelectric effect. When they are subjected to an applied electric voltage, these materials physically deform—they get longer and shorter.
By subjecting a rapidly vibrating electric field, these crystals can be caused to oscillate at very high frequencies, thousands or millions of times a second. This transforms the crystal into a very powerful generator of sound waves well beyond the range of human hearing, a field known as ultrasonics.
From Vibration to Heat: The Enchantment of Ultrasonic Heating

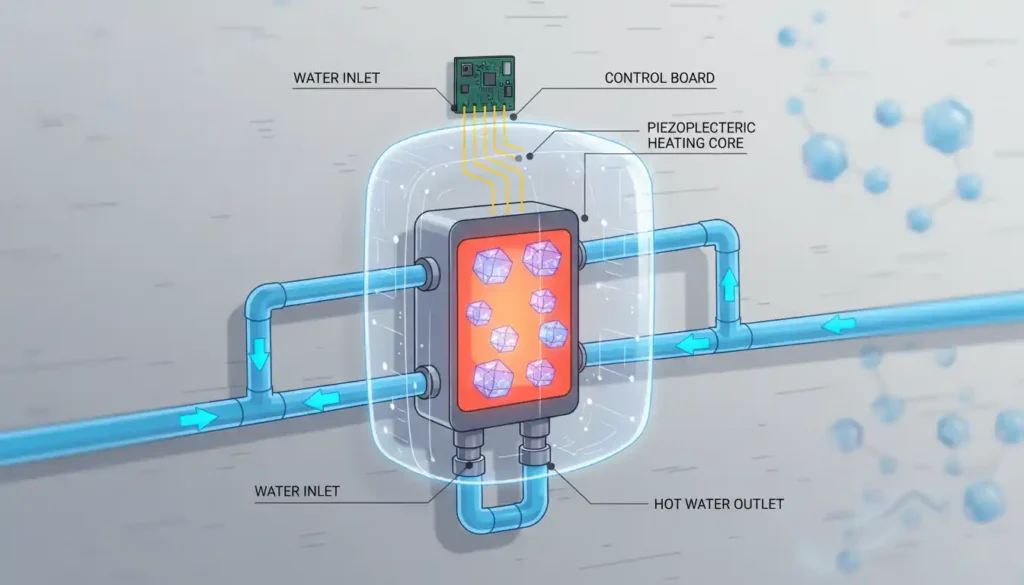

An ideal piezoelectric water heater is not really a heater; it is not a device with a resistive element glowing red. It is rather an electro-acoustic transducer, a concept tried out in various configurations by experimenters. One way has been outlined in patents for an “electro-acoustic resonance heater” that offers a method of heating liquids according to these principles.
At its center is a piezoelectric transducer, a device that converts electrical energy into aggressive mechanical vibrations. When these high-frequency vibrations are introduced into a chamber containing flowing water, two powerful phenomena are unleashed:
1. Cavitation: The Power of Imploding Bubbles. The high-speed sound waves generate quick cycles of high and low pressure in the water. At the low-pressure stage, the water itself is actually torn apart, creating millions of tiny vapor bubbles. At the resulting high-pressure stage, the bubbles implode—and this happens with unimaginable force.
When a single cavitation bubble collapses, it releases a gigantic pulse of energy with a microscopic “hot spot” that approaches thousands of degrees over the fraction of a second it lasts, and pressures greater than those at the bottom of the ocean. This intense, focused energy release is repeated millions of times per second and heats the water directly.
2. Acoustic Streaming: A Silent Stirring Rod. As the ultrasonic waves travel through the water, they transfer momentum to it, creating a smooth, intense micro-current. This effect, known as acoustic streaming, is like an imperceptible, high-velocity stirring rod.
It results in the excess heat created at areas of cavitation being rapidly and efficiently dissipated throughout the whole mass of water, preventing boiling centers and providing for uniform heating.
Reimagining Hot Water: The Seductive Benefits
The theoretical benefits of successfully utilizing this technology are groundbreaking, addressing nearly all key shortcomings of conventional water heaters.
Instantaneous and On-Demand
In contrast to tank heaters that waste energy keeping 40 or 50 gallons of water heated 24/7, a piezoelectric system will heat water the moment it begins flowing. This minimizes standby heat loss, a major source of wasted energy for most homes, and provides an authentic boundless hot water supply.
Point-of-Use Efficiency
By warming the water directly where it’s needed—at the tap, in the shower—the system would reduce the energy lost as hot water cools as it travels through long pipe runs from a central heater by half. This increases the efficiency of the entire hot water system.
A Compact and Space-Saving Revolution
Gone from under the heel of the tank, these heaters could be very small. Imagine an appliance no more substantial than a small shoebox mounted discreetly under a sink or in a wall space, eliminating the closet or basement real estate currently occupied by a big metal drum. Patents like this one for a “compact piezoelectric fluid heater” explicitly list miniaturization potential.
The Self-Cleaning Heater
The rough shaking and scouring of cavitation have a practical side effect: they can inhibit, and even strip off, the mineral scale deposits (limescales). This is an ongoing problem with traditional heaters that encase the heaters, drastically reducing their efficiency and lifespan in the long run.
Beyond the Buzz: The Brutal Hurdles on the Path to Reality
If the concept is so good, why is this technology not in your home? The answer lies in a series of profound and inexorable scientific barriers that seldom receive mention outside the confines of research establishments. They are not engineering refinements; they are profound obstacles with their roots in the physics of the heating element.
The Self-Destructing Heater
The most critical unstated issue is that the center heating device, cavitation, is suicidal in operation. This goes far, far beyond any issue of “durability.”
First off, there’s the problem of cavitation erosion. The symptomatic implosion of millions of bubbles is a remorseless, microscopic jack-hammering on the surface of the piezoelectric transducer. This is the well-documented material science effect that will eventually wreak havoc on even the toughest material.
On and on, this constant physical pounding wearolls, wears away, and ages the transducer material so its performance deteriorates until at some point it fails. A product designed to last for ten years in a household would degrade internally until failure.
Secondly, more quietly, is water-induced material degradation. The most popular high-performance piezoelectric materials, e.g., lead zirconate titanate (PZT), are in fact ceramics that are surprisingly prone to the environment. Scientific research has demonstrated that exposure to humidity and direct contact with water can significantly accelerate the degradation of PZT ceramics.
This can result in a reduction in the material’s piezoelectricity, an increase in electrical leakage, and even electrothermal breakdown. In effect, the heating water becomes an active foe, striving to break down the very core of the heating device that is attacking it.
The Unstable Heart: Pursuing a Perpetually Moving Target
High efficiency is achieved by forming a perfectly harmonized resonant acoustic field. This is a ridiculously fussy balancing act that is nearly impossible to sustain in the real world.
The problem is that the resonant frequency of the system is operationally dependent upon the properties of the water—specifically, its temperature and density. When the water gets warmer, both of them change, so the best frequency for maximum efficiency is always changing.
In order to compensate for this, the heater would need a hyper-sensitive control system that could track this moving target in real-time and adjust the electrical frequency accordingly. Most patents accomplish this, by means of complicated control circuitry, like in this “ultrasonic heater with frequency tracking,” which introduces an intimidating amount of complexity and cost.
This is compounded by a thermal chaos process. The piezoelectric transducers themselves generate significant waste heat when operating at high power. Their internal self-heating can heat up the transducer to the point that its own internal properties are compromised.
This creates a profoundly ironic engineering challenge: you need to consciously cool the core element of your heater so that you don’t cause it to fail. This internal heating also changes the transducer’s internal resonant frequency, so the control system’s already hopeless task is made even more impossible.
The Hidden Chemistry: Are We Changing the Water Itself?
One of the most profound and underinvestigated issues is the field of sonochemistry—the investigation of chemical reactions induced by ultrasound. The ultrahigh pressures and temperatures inside a collapsing cavitation bubble are so intense that they are able to accomplish more than merely producing heat; they can actually break water molecules (H₂O) down into highly reactive free radicals like hydrogen (H•) and hydroxyl (•OH).
This sonolysis treatment releases a Pandora’s box of issues about the safety and purity of water. While this phenomenon is used deliberately in treatments like wastewater treatment to break down pollutants, what are its unintended consequences in a domestic water heater?
Can these reactions generate unwanted or even toxic chemical byproducts in our potable and bathing water? The entire popular debate on piezoelectric heating is focused on the heat production, with a total blind eye on the potential chemical transformation in the water itself.
A Future Forged in Vibration, or a Dream Deferred?
The piezoelectric water heater remains a stroke of genius and alluring concept. It is a revolutionary rethinking of a mundane but unavoidable household task, promising an unprecedented future of efficiency and convenience. The underlying science works, and the possible dividend is assured.
But the path from lab curiosity to a reliable, safe, and cheap consumer staple is blocked by behemothic obstacles. This is not a technology “a few years away.” It is fighting for its very survival against material science, fluid dynamics, and thermodynamics. It must overcome the self-destructive tendency of its own mechanism, tame a fierce and unsteady process of heating, and deal with profound questions regarding its effect on the very water it is meant to warm.
Overcoming these challenges will require nothing short of revolutionary breakthroughs in new, ultra-durable piezoelectric materials, hyper-smart control systems, and much greater understanding of sonochemistry in potable water systems. In the meantime, the piezoelectric water heater’s sonic boom is a distant reverberation—a beautiful idea waiting for the science to match the fantasy.
