A beautiful patio can be the centerpiece of an outdoor living space, but that dream quickly turns sour when unsightly puddles form after every rainfall. Standing water is more than just an annoyance; it creates a slippery hazard, damages patio furniture, provides a breeding ground for mosquitoes, and can even contribute to foundation issues over time. If your concrete patio has become a shallow pond, you’ve likely wondered about a simple solution: can you just drill holes for drainage? The answer is a resounding yes, and this guide will show you how to do it correctly and effectively.
Wewill walk you through understanding why water pools, the essential prep work before you start, a step-by-step drilling process, and how to properly finish the job for long-lasting results. We’ll also explore alternatives for when drilling holes might not be enough.
Why is Water Pooling on My Patio? Understanding the Root Causes
Before you grab a drill, it’s crucial to understand why your patio isn’t draining on its own. Identifying the root cause can help you determine the best long-term solution. Most drainage problems stem from one or more of the following issues.
Improper Slope or Gradient
Ideally, a concrete patio should not be perfectly flat. A well-constructed patio has a subtle slope, typically a quarter-inch drop for every foot, directing water away from your home’s foundation and into the yard. If the patio was installed without this grade, or if it has settled over time and now slopes toward the house, water will have nowhere to go.
Low Spots and Depressions
Over the years, the ground beneath a concrete slab can settle unevenly. This can cause sections of the patio to sink, creating shallow depressions where water naturally collects. Even a small dip can lead to a significant puddle that never seems to dry out.
Compacted Soil and Poor Yard Drainage
Sometimes the problem isn’t the patio itself, but the surrounding area. If the soil in your yard is heavily compacted clay or the landscaping around the patio is higher than the concrete surface, water can become trapped. The runoff from the patio has nowhere to drain, effectively creating a bathtub effect around the slab.
Before You Drill: Essential Considerations and Preparations
Drilling holes is an effective solution, but preparation is key to a safe and successful project. Rushing into this task without the right tools and precautions can lead to bigger problems.
Assess the Problem and Locate Low Points
First, determine where the water is pooling. After the next rain, use chalk to circle the areas with standing water. These are the precise locations where you’ll need to drill. For a more accurate assessment, you can use a long level to identify the lowest spots on the patio surface.
Crucial Safety Step: Check for Utilities
This cannot be overstated: before you drill or dig anywhere on your property, you must check for underground utility lines. Hitting a water, gas, or electrical line is incredibly dangerous and can lead to costly repairs. In the United States, you can call 811 (the “Call Before You Dig” hotline) to have public utilities marked for free. Do not skip this step.
Gathering the Right Tools and Materials
Using the wrong equipment will, at best, be ineffective and, at worst, damage your tools. A standard cordless drill is not powerful enough for this job. You will need:
- Hammer Drill: This type of drill combines rotation with a rapid hammering action, which is necessary to break through concrete.
- Masonry Drill Bits: You’ll need carbide-tipped or diamond-tipped masonry bits. A common size for drainage holes is between 1/2-inch and 1-inch in diameter.
- Safety Gear: Always wear safety goggles, a dust mask, and heavy-duty gloves. Drilling concrete creates fine silica dust that is harmful to inhale.
- Shop-Vac: Essential for cleaning dust and debris out of the drilled holes.
- Pea Gravel or Coarse Gravel: This is used to fill the holes to create a permanent drainage path.
- Landscape Fabric (Optional but Recommended): A small piece can prevent soil from clogging your new drain from below.
Choosing the Right Drill Bit
The success of your project heavily depends on using the correct drill bit. Here’s a breakdown of the best options for drilling into a concrete patio.
| Drill Bit Type | Best For | Pros | Cons |
|---|---|---|---|
| Carbide-Tipped Masonry Bit | General-purpose drilling of holes up to 1 inch. | Widely available, affordable, and effective for most DIY patio projects. | Can wear out more quickly than diamond bits, may struggle with very hard aggregate. |
| Diamond Core Bit | Drilling larger, cleaner holes (over 1 inch). | Extremely durable, cuts very clean and precise holes, faster on tough concrete. | More expensive, often requires water for cooling during operation. |
Step-by-Step Guide: How to Drill Holes in a Concrete Patio for Drainage
With your preparation complete and tools in hand, you’re ready to create your drainage solution. Follow these steps carefully for the best results.
Step 1: Mark Your Drilling Locations
Using the chalk marks you made earlier, confirm the lowest point of each puddle. This is where you will drill. Plan to drill one hole for every few square feet of pooling water. For larger areas, you may need a pattern of several holes spaced about 12-18 inches apart.
Step 2: Prepare Your Hammer Drill
Insert your chosen masonry bit securely into the chuck of your hammer drill. Make sure the drill is set to the “hammer” or “percussion” mode. If you’re drilling near your home, consider if your tools are connected to a safe power source, as a properly installed switched GFCI outlet is always recommended for outdoor electrical work.
Step 3: Drill the Drainage Hole
Place the tip of the drill bit on your mark and begin drilling at a slow speed to create a starting point. Once the bit is set, increase the speed. Apply firm, steady pressure, but do not force the drill; let the tool’s hammering action do the work. Periodically pull the bit out of the hole to clear away concrete dust, which helps reduce friction and heat.
Step 4: Clean the Hole Thoroughly
Once you have drilled completely through the slab, the hole must be cleaned out. This is a critical step for ensuring proper drainage. Use a shop-vac to completely remove all concrete dust and debris from inside the hole. Any remaining dust can turn into a sludge when wet and clog your new drain.
Maximizing Drainage: The Right Way to Fill the Holes

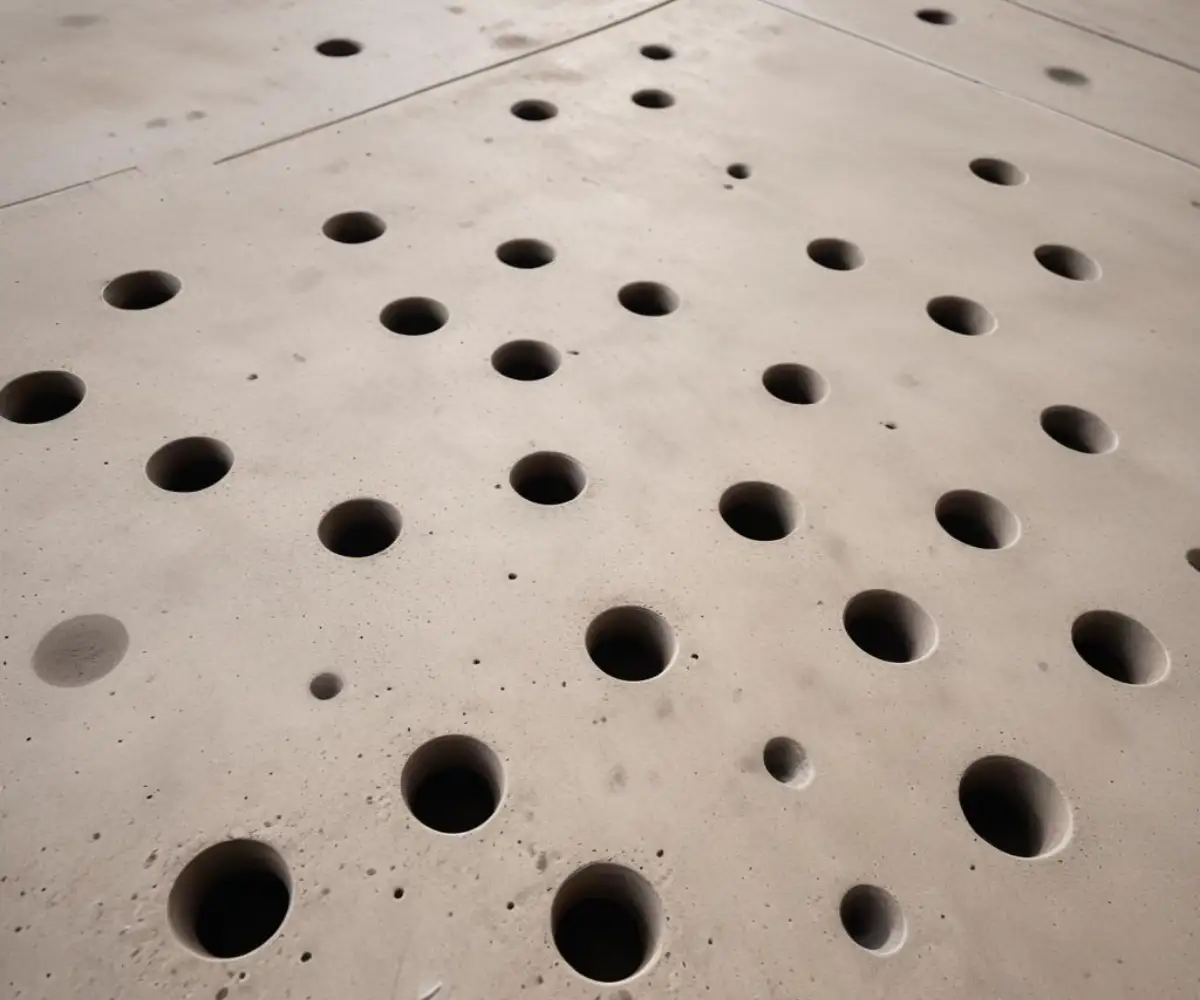

Simply drilling a hole and leaving it empty is a short-term fix. Over time, an empty hole will fill with dirt, leaves, and other debris, rendering it useless. To create a lasting “mini-French drain,” you must fill the hole with gravel.
Step 1: Create a Gravel Sump
After drilling through the concrete, use a piece of rebar or a garden auger to loosen and remove some of the soil and compacted base material from beneath the slab, creating a small cavern or “sump.” This gives the water a larger area to collect and percolate into the ground.
Step 2: Add a Fabric Liner (Optional but Recommended)
For superior, long-term performance, cut a small square of landscape fabric and push it to the bottom of the hole. This creates a barrier that prevents the surrounding soil from mixing with and clogging the gravel you’re about to add, a detail many guides overlook.
Step 3: Fill with Gravel
Fill the hole with pea gravel or other coarse, clean gravel. Fill it up to about one inch below the patio surface. Do not use sand or dirt, as these materials will compact and block water flow. The gravel creates voids that allow water to pass through freely while preventing the hole from collapsing.
Advanced Drainage Solutions and Alternatives
In some cases, especially with severe water pooling or very poor soil conditions, drilled holes may not be sufficient. If you have a significant amount of water to manage, you might need to consider a more robust solution.
Installing a French Drain
A French drain is a classic and highly effective solution. This involves digging a trench around the perimeter of the patio, laying a perforated pipe surrounded by gravel, and directing the pipe to a lower point in your yard or a dry well. This system intercepts water before it can even reach the patio slab.
Channel Drains
For large, flat surfaces, a channel drain (or trench drain) is an excellent option. This involves cutting a channel into the concrete and installing a linear drain with a grate on top. These systems can capture a high volume of water and are very effective at keeping a patio surface dry. This is a more involved project, sometimes requiring knowledge of other construction tasks, such as understanding how to splice 6 gauge wire if a sump pump is needed.
Permeable Pavers
If you’re considering a complete patio overhaul, replacing the solid concrete slab with permeable pavers is a modern, eco-friendly solution. These pavers are installed over a bed of aggregates and allow rainwater to seep through the joints directly into the ground, eliminating runoff entirely.
The Untapped Potential: Turning a Simple Drain Hole into a Mini Ecosystem
The real unique angle is to frame this process not just as a repair, but as an opportunity for subtle, eco-friendly landscape enhancement.
Here’s how to elaborate on this concept:
- Beyond Gravel: The Sub-Patio Soil Environment: Most guides, including this one, focus on creating a sump and filling it with gravel. A unique perspective would be to discuss the soil underneath the new gravel sump. Is it compacted clay that will just hold the water, or is it healthier soil that can actually use it? Using a garden auger to not only remove compacted material but also to mix in sand or compost deeper into the subsoil. This would improve percolation and actively combat the root cause of poor yard drainage..
- Strategic Planting for a Symbiotic Relationship: Instead of just letting the water disappear, why not use it? Planting water-loving native plants or a small rain garden adjacent to the patio edge where the drainage is now concentrated. By directing the overflow from these new drainage points towards these plantings, the homeowner is:
- Conserving Water: Reusing rainwater that would otherwise be lost.
- Reducing Runoff: Preventing excess water from overwhelming storm drains.
- Creating a More Lush Landscape: The area around the patio, which might have been a muddy mess, can now support beautiful and beneficial plants.
- A Note on Soil Health and Micro-Invertebrates: For a truly original touch, a small section could mention how creating these drainage points can improve the health of the soil ecosystem under and around the patio. By reducing waterlogged, anaerobic conditions, it allows for beneficial organisms like earthworms and microbes to thrive. This leads to healthier soil and better overall yard health in the long run.
Maintaining Your New Patio Drains
Your newly drilled drainage holes are low-maintenance, but not zero-maintenance. To ensure they continue to function properly for years to come, follow these simple tips:
- Keep the Patio Surface Clean: Regularly sweep leaves, dirt, and other debris from your patio. This prevents material from washing into the drains and causing clogs.
- Inspect the Holes Periodically: After a heavy rain, check to make sure the holes are draining effectively.
- Flush if Necessary: If you notice drainage slowing down, you can use a garden hose to flush out any fine sediment that may have accumulated in the gravel.
By taking the time to diagnose the problem, prepare properly, and execute the job with care, you can effectively solve your patio drainage issues. Drilling holes is a straightforward and powerful DIY solution that can reclaim your outdoor space from puddles, making it a safe and enjoyable area once again.
