You’re in the middle of a weekend project. You need to extend a circuit to add a new outlet, but you’ve run into a classic DIY dilemma. The existing wire is white, and the new spool of Romex® you have is yellow. You pause and ask the question that has stopped countless home improvement projects in their tracks: Can you mix yellow and white Romex?
The short answer is yes, you absolutely can. But the long answer is far more important, because doing it wrong is not just a code violation—it’s a serious fire hazard.
Mixing these wires is governed by one unbreakable rule. Getting it right is simple, but getting it wrong can have devastating consequences. This guide won’t just give you the answer; it will provide you with the deep knowledge to wire safely, smartly, and even better than the pros. We’ll cover the basic color codes, the golden rule of mixing gauges, and advanced topics that other blogs won’t tell you about—from future-proofing your circuits to uncovering the dangerous secrets of wiring in older homes.
Section 1: The Basics – Decoding Romex Color Codes
Before we can mix wires, we need to understand what they are. The colorful plastic sheathing on Romex and other non-metallic (NM) building wire isn’t for decoration; it’s a critical safety feature that tells you the gauge (thickness) of the copper wires inside.
Think of electricity flowing through a wire like water through a hose. The amount of electrical current (measured in amperes, or amps) needs a hose of the right size. If you force too much water through a tiny hose, it will burst. Similarly, if you force too much electrical current through a wire that’s too thin, it will dangerously overheat and can melt its sheathing, creating a fire hazard.

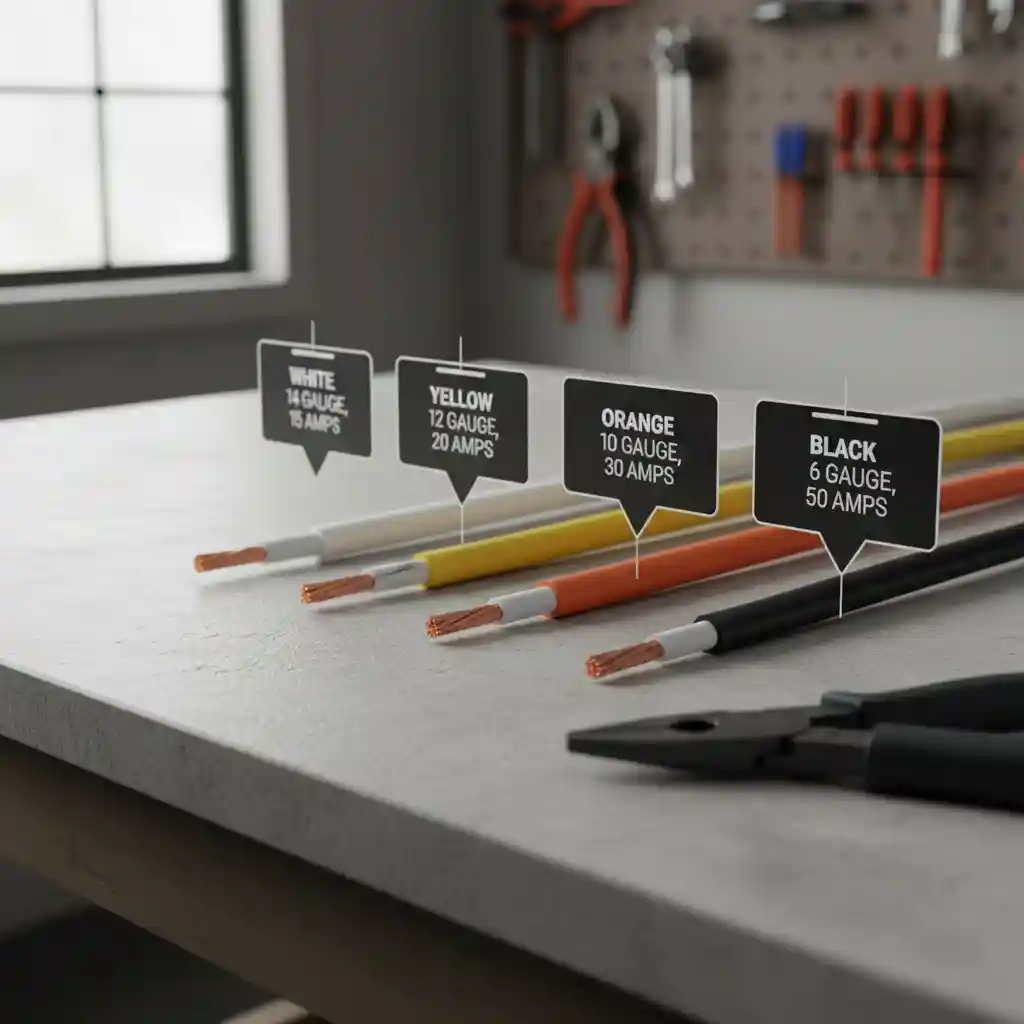

Here is the standard color code you need to know:
| Sheathing Color | Wire Gauge | Max Amperage | Common Uses |
| White | 14-Gauge | 15 Amps | General lighting circuits, standard bedroom/living room outlets. |
| Yellow | 12-Gauge | 20 Amps | Kitchens, bathrooms, garages, dedicated appliance outlets. |
| Orange | 10-Gauge | 30 Amps | Electric dryers, central air conditioners, electric water heaters. |
There are other colors for larger wires (like black and gray) and multi-conductor cables, but for 99% of household circuits, white and yellow are what you’ll encounter. The key takeaway is simple: Yellow Romex contains thicker 12-gauge wire that can handle more current than the thinner 14-gauge wire inside white Romex.
Section 2: The Golden Rule of Mixing Wire Gauges
Now that we know yellow is 12-gauge (20-amp) and white is 14-gauge (15-amp), we can establish the single most important rule for mixing them. If you remember nothing else from this article, remember this:
The entire circuit must be protected by a circuit breaker rated for the SMALLEST wire gauge in the circuit.
The circuit breaker in your electrical panel is the safety guard. Its job is to automatically shut off the power if the current exceeds a safe level for the wires it’s protecting. Let’s see how this rule plays out in two real-world scenarios.
Scenario 1: The SAFE and Code-Compliant Method
You have an existing circuit with 14-gauge (white) Romex connected to a 15-amp breaker. You want to extend it using the 12-gauge (yellow) Romex you have on hand.
- Is this safe? Yes, perfectly safe.
- Why? The 15-amp breaker will trip long before the current ever reaches a level that could challenge the thicker 12-gauge wire. You are simply using a bigger “hose” than you need for a portion of the run, which causes no harm. You are protecting the entire circuit, including the weakest link (the 14-gauge wire), with the correct 15-amp breaker.
Scenario 2: The DANGEROUS and Illegal Method
You have an existing 20-amp kitchen circuit wired with 12-gauge (yellow) Romex and protected by a 20-amp breaker. You want to add a new outlet using some leftover 14-gauge (white) Romex.
- Is this safe? Absolutely not. This is a critical fire hazard.
- Why? The 20-amp breaker will happily allow up to 20 amps of current to flow through the circuit. If you plug in a high-draw appliance like a space heater or a powerful kitchen blender, that current will flow through your new section of 14-gauge wire. Because that wire is only rated for 15 amps, it will begin to severely overheat. It can melt its insulation and ignite surrounding wood framing—all without the 20-amp breaker ever tripping, because it doesn’t see a problem yet.
This is the most common and dangerous mistake DIYers make. Never, ever connect a 14-gauge wire to a circuit protected by a 20-amp breaker.
Section 3: How to Safely Splice Yellow and White Romex
If you’re in a safe scenario (adding 12-gauge wire to a 15-amp circuit), making the physical connection is straightforward but must be done correctly.
- Safety First, Always: Go to your electrical panel, switch off the correct breaker, and put a piece of tape over it so no one can turn it back on. Use a non-contact voltage tester to confirm there is absolutely no power in the wires you are about to handle.
- Use a Junction Box: All wire splices must be contained within an accessible, approved electrical box (usually blue plastic or metal). Never splice wires and leave them floating inside a wall.
- Strip the Wires: Use a proper wire stripper that has marked holes for 12-gauge and 14-gauge wire. This ensures you remove the insulation without nicking or weakening the copper conductor. Strip about 3/4 of an inch.
- Choose the Right Connector: The most common tool for the job is a wire nut. Most standard red or yellow wire nuts are rated for a combination of 12 and 14-gauge wires, but you must read the manufacturer’s packaging to confirm. An excellent modern alternative is a push-in or lever-style connector (like those from WAGO), which are often easier for DIYers to use correctly and provide a secure connection every time.
- Make the Connection: Hold the copper ends of the wires together and twist the wire nut clockwise. Twist until it’s very snug. Give each wire a gentle tug to ensure it’s secure. There should be no bare copper visible below the base of the wire nut.
Section 4: Beyond the Basics: Future-Proofing and Advanced Tips
Simply following the golden rule makes your connection safe, but a truly professional job involves thinking about the future.
The Problem: Future Confusion
The biggest non-safety drawback of mixing gauges is creating confusion for the next person to work on the wiring—which could be you in a few years! Imagine someone opens an outlet box, sees thick yellow 12-gauge wire, and assumes the entire circuit is rated for 20 amps. They might incorrectly “upgrade” the 15-amp breaker to a 20-amp one, unknowingly creating the dangerous scenario we discussed earlier.
The Solution: The Art of Labeling
This is the single most important step after making your connection, and one that most guides gloss over. Proper labeling prevents all future confusion.
- At the Electrical Panel: Don’t just label the circuit “Bedroom Outlets.” Use a fine-tip permanent marker or a label maker to write: “15-AMP MAX – MIXED 12/14 GAUGE WIRE.” This immediately warns anyone against changing the breaker.
- Inside the Junction Box: Before you screw on the cover plate, place a small, clear label on the inside of the box itself stating: “NOTICE: Circuit contains mixed 12AWG & 14AWG conductors. Protected by 15A OCPD (Overcurrent Protection Device).”
To make this easy, we’ve created a free, downloadable PDF of professional panel and junction box labels you can print at home. Download Your Free Electrical Safety Labels Here
Future-Proofing and Mitigating Voltage Drop
There’s actually a smart reason to intentionally use 12-gauge (yellow) wire on a 15-amp circuit: voltage drop. Over very long wire runs (e.g., to a detached garage or the far corner of a large house), the inherent resistance in the wire can cause the voltage to decrease. This can make motors run harder, lights appear dimmer, and sensitive electronics perform poorly.
Because 12-gauge wire is thicker, it has less resistance than 14-gauge wire. By using 12-gauge wire for the entire length of a long 15-amp circuit, you minimize voltage drop and ensure devices get the power they need to operate efficiently. While the material cost for 12-gauge Romex is slightly higher, it’s a wise investment for performance and for future flexibility if that circuit ever needs to be upgraded.
Section 5: The Critical Information No One Else Is Talking About
This is where we go from basic knowledge to true expertise. These are the niche scenarios and historical quirks that can lead to dangerous assumptions if you’re not aware of them.

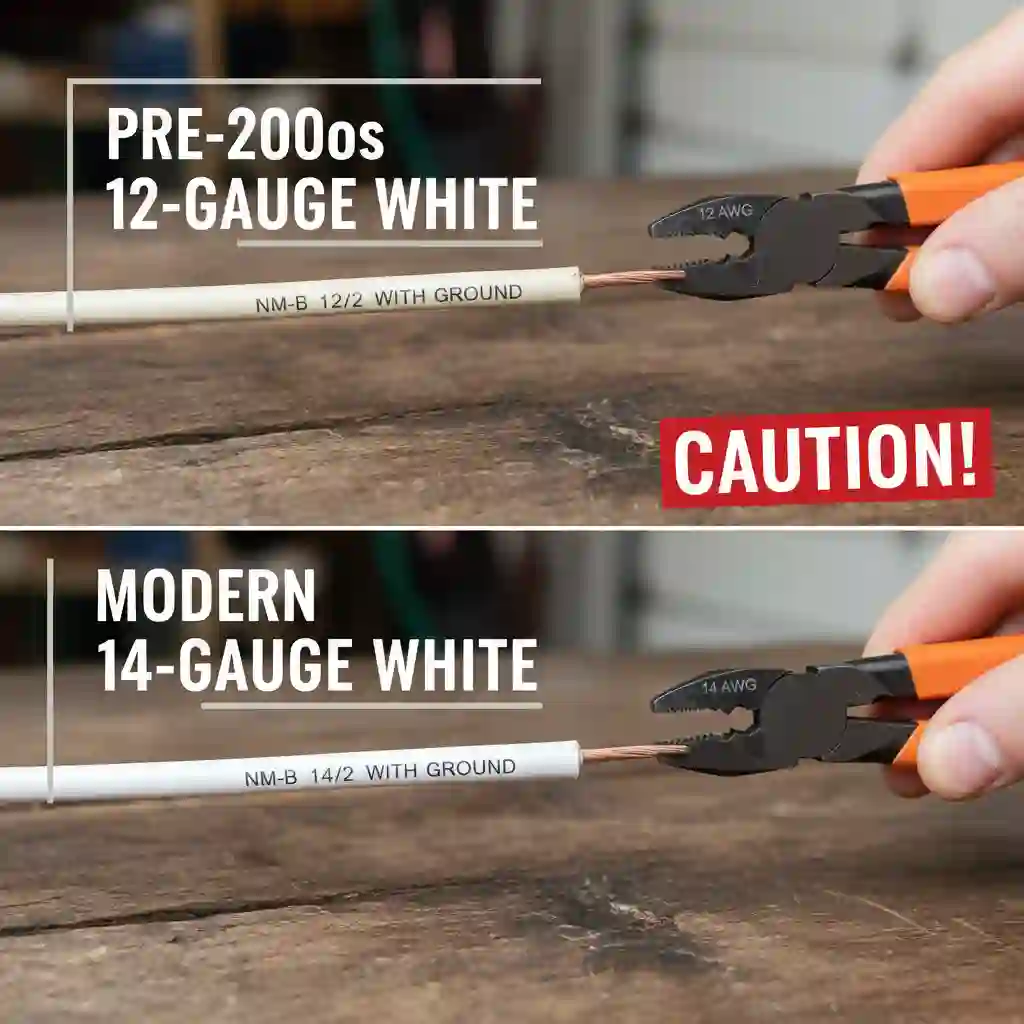

The “Old House” Trap: When 12-Gauge Romex Was Also White
If you live in a house built before 2001, you cannot trust the color of the Romex sheathing alone. Before the current color-coding standard was fully adopted by all manufacturers, both 12-gauge and 14-gauge Romex were commonly produced with a white outer jacket.
You could have two identical-looking white cables side-by-side, where one is 14-gauge and the other is 12-gauge. Assuming the white cable is 14-gauge could lead you to make a catastrophic mistake.
How to Identify Wire Gauge in Older Homes:
- Read the Sheathing: Carefully inspect the outer jacket for any printed text. Manufacturers often print the wire type and gauge (e.g., “NM-B 12/2 WITH GROUND”) directly on the sheathing.
- Use Your Wire Strippers: Turn off the power and cut a small piece of the wire. A quality pair of wire strippers has precisely sized holes for stripping different gauges. See which hole—the one marked “12 AWG” or “14 AWG”—fits the copper conductor perfectly. This is a foolproof method.
Insurance, Home Inspections, and Resale Value
Will a properly installed mixed-gauge circuit cause problems with your homeowner’s insurance or when you sell your house?
The answer is no, provided it’s done to code (i.e., protected by the correct 15-amp breaker). A code-compliant installation is a safe installation. However, an unlabeled mixed-gauge circuit can raise a red flag for a sharp home inspector. It signals ambiguity and potential DIY work that might not be up to par.
By clearly and professionally labeling the circuit at the panel as we described, you do the opposite. You demonstrate a high level of knowledge and conscientiousness. This tells an inspector that you understand the “why” behind your work, which can actually increase their confidence in the overall state of your home’s electrical system.
Advanced Concept: “Step-Down” Wiring for Dedicated Loads
In some rare cases, you might want to tap a low-power device off a 20-amp circuit. For example, adding a single small LED light to a 20-amp garage circuit. According to the National Electrical Code (NEC), you can tap a 14-gauge wire off a 12-gauge circuit, but only if the smaller wire has its own, separate overcurrent protection rated for its capacity. This would mean installing an in-line fuse holder with a 15-amp fuse, which is complex and almost never practical. For all intents and purposes, it’s far safer and simpler to stick to the golden rule: Don’t connect 14-gauge wire to a 20-amp breaker.
Final Verdict: Wire with Confidence
So, can you mix yellow and white Romex? Yes. The journey from a simple question to a confident answer lies in understanding the principles behind the rules.
Let’s summarize the key takeaways:
- The Golden Rule is Law: The circuit breaker’s amperage must always match the smallest wire gauge on that circuit.
- 15-Amp Max for White: If any piece of 14-gauge (white) Romex is part of your circuit, the circuit breaker must be 15 amps. No exceptions.
- Labeling is Not Optional: It is a critical step for future safety and sanity. Label the panel and any junction boxes where gauges are mixed.
- When in Doubt, Go Bigger or Go Pro: If you’re unsure, using the thicker 12-gauge wire for your entire project is always a safe bet. But more importantly, your home’s electrical system is not the place for guesswork. If you have any hesitation, the smartest and safest decision you can make is to call a licensed electrician.
What are your experiences with home wiring? Have you ever opened up a wall to find a confusing mix of wires? Share your questions and stories in the comments below
